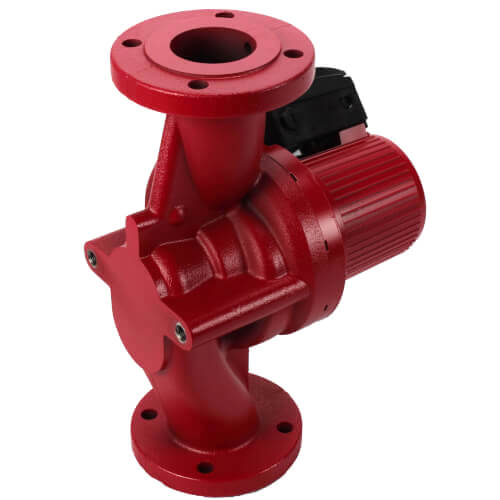

Grundfos UPS80-160/2 3-Speed Cast Iron Circulator Pump 3 HP

Product Description

The Grundfos UPS80-160/2 is a cast iron circulator pump designed for effective circulation of liquids in both heating and air conditioning systems. This model is suitable for large residential and commercial applications. It features a three-speed motor that operates quietly while ensuring efficient energy use.

• 3 Speed Motor Technology minimizes noise and reduces energy costs
• Uses exclusive wet rotor technology for up to 3 horsepower
• Includes built-in motor protection for extended reliability

Product Highlights

This circulator pump provides reliable performance for various heating and cooling tasks.

Product Information

Standard Information

• Brand: Grundfos
• MPN: UPS80-160/2

Technical Specifications

• Frequency: 60 Hz
• Material: Cast Iron
• Type: 3-Speed Pump
• Voltage: 230V
• Horse Power: 3
• Speeds: 3
• Max Head: 52.5 ft
• Max Flow: 117 GPM
• Max Pressure: 145 PSI
• Phase: 3
• Mount: In-Line
• Connection Type: Flanged x Flanged
• Liquid Temperature Range: 14 to 248 Degrees F
• Flanged Size: 3 inches
• Housing Material: Cast Iron
