Product Description

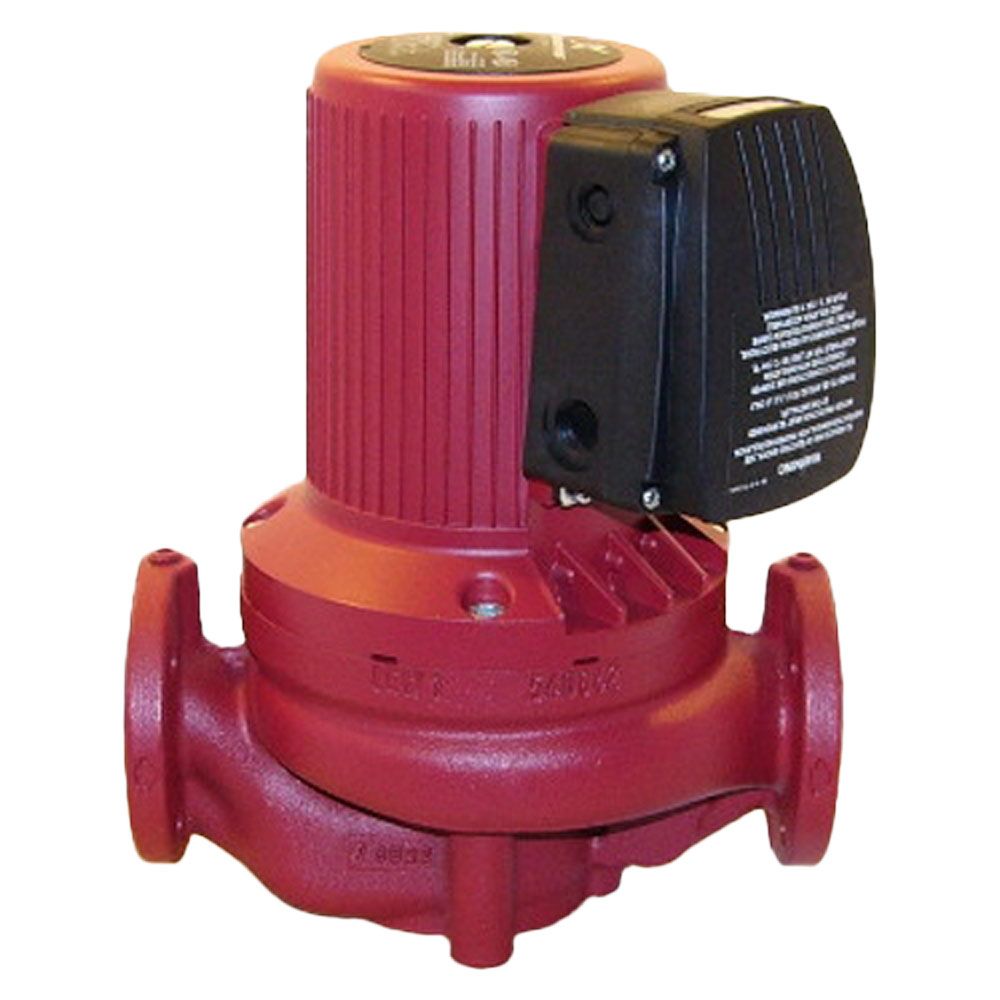

The Grundfos UPS50-80/4F is a circulator pump designed for hydronic heating in closed loop systems. This model operates on a three-phase motor with a horsepower of three-quarters, utilizing a voltage range of 208-230 volts. The pump features a three-speed setting for better control and efficiency. It includes flange gaskets and is compatible with GF50 flanges, which are sold separately.
- Used in hydronic heating systems
- Built with a canned rotor design for better longevity
- Corrosive-resistant non-metallic impeller
Product Highlights
This circulator pump offers efficient performance, quiet operation, and minimal lubrication maintenance.
Product Information
Standard Information
-
Brand: Grundfos
-
Model: UPS50-80/4F
Technical Specifications
-
MPN: 96404960
-
Grundfos Series: UPS Series
-
Pump Construction: Cast Iron-SSF (SS Fitted)
-
Pump Type: Circulator
-
Pump Class: Booster
-
Pump Mounting: In-Line
-
Pump Connection Size: 2 inches
-
Pump Connection: 4-Bolt Flanged
-
Flanges Included: No
-
Motor HP: 3/4 HP
-
Motor RPM: 1800 RPM
-
Motor Voltage: 208-230V
-
Motor Phase: 3 Ph
-
Motor Hertz: 60 Hz
-
Max Temp: 250 degrees F
-
Potable Water: No
-
UPC: 5700390738679
-
Weight: 69.40 lbs
