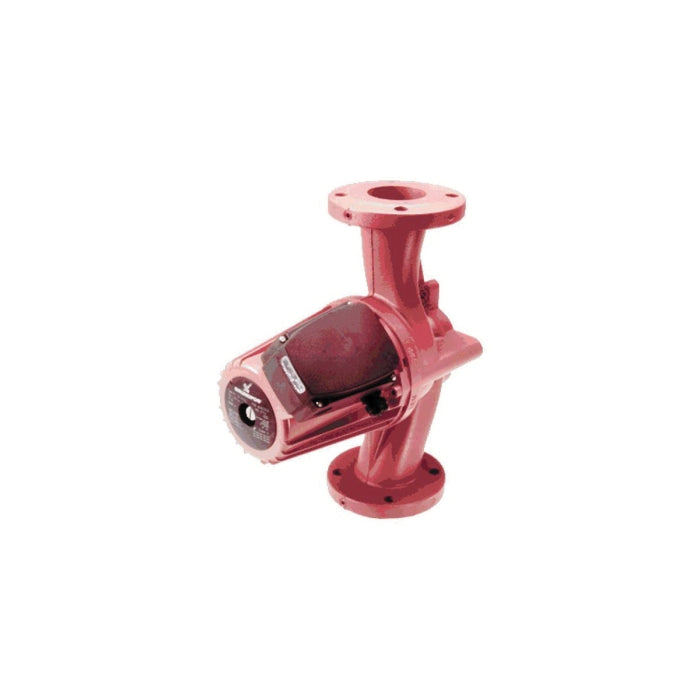

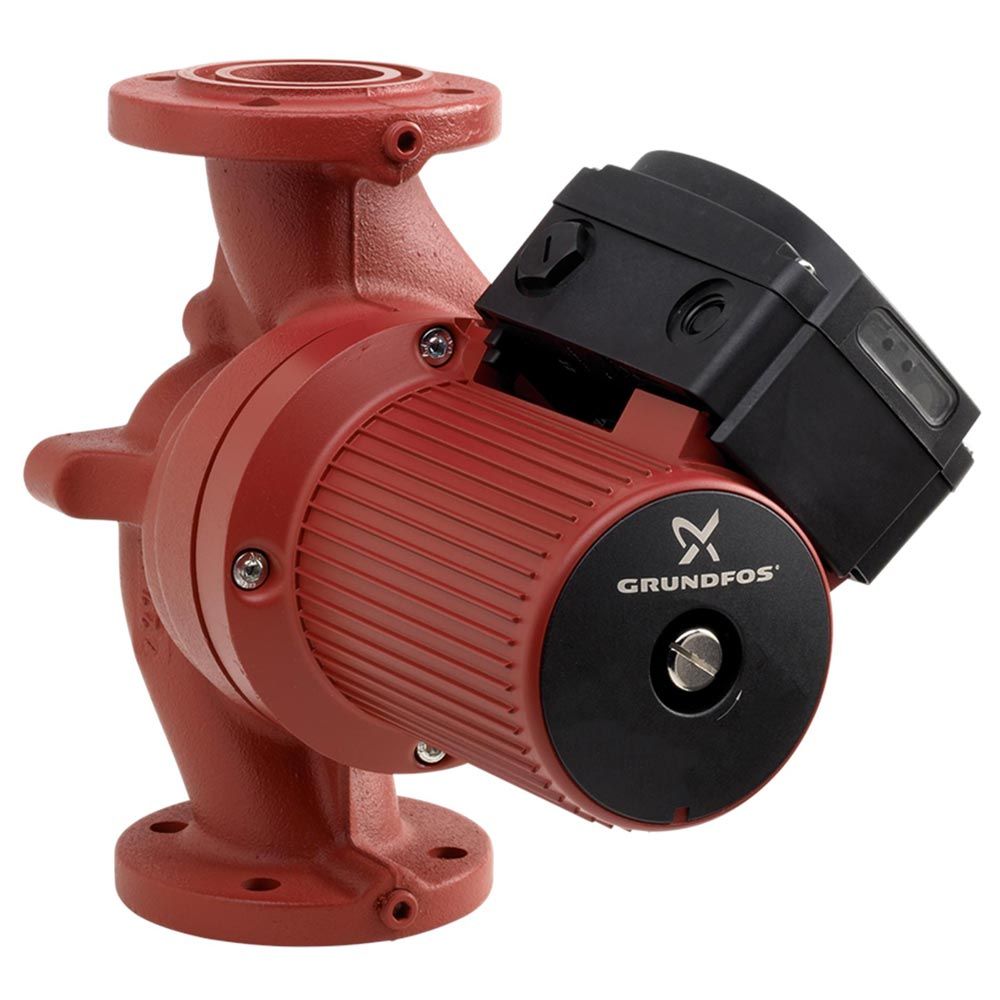

Grundfos 96404958 UPS50-80/4F Circulator Pump with Relay 115 VAC

Product Description

The Grundfos 96404958 UPS50-80/4F Circulator Pump is designed for efficient circulation of liquids in various heating and air-conditioning systems. This model features a 3-speed motor, making it versatile for different flow requirements.

• 3-speed motor with 115 VAC
• Cast iron construction
• Integrated thermal switch

Product Highlights

Grundfos UPS50-80/4F Circulator Pump offers maximum reliability and performance. Designed for commercial and residential use, it reduces downtime with easy maintenance and built-in thermal safety features.

Product Information

Standard Information

• Brand: Grundfos
• Series: UPS Series
• MPN: 96404958

Technical Specifications

• Flow Rate: 160 gpm
• Maximum Head: 26-1/4 ft
• Power Rating: 720 W
• Frequency Rating: 60 Hz
• Voltage Rating: 115 VAC
• Amperage Rating: 5.15 to 7.55 A
• Motor Speed: 1491 to 1694 rpm
• Dimensions: 13-3/4 inches W x 11-1/2 inches H
• Weight: 64.40 lbs
• Temperature Rating: 32 to 104 degrees F Ambient
• Maximum Pressure: 145 psi
• Enclosure Type: X4D
• Material: Cast Iron
• Connection Size: 2 inches
• Connection Type: Flanged
• Motor HP: 3/4 HP
• Pump Type: Variable Speed
• Mounting: In-Line
• Maximum Temperature: 250 degrees F
• Usage: For Closed and Open Systems
