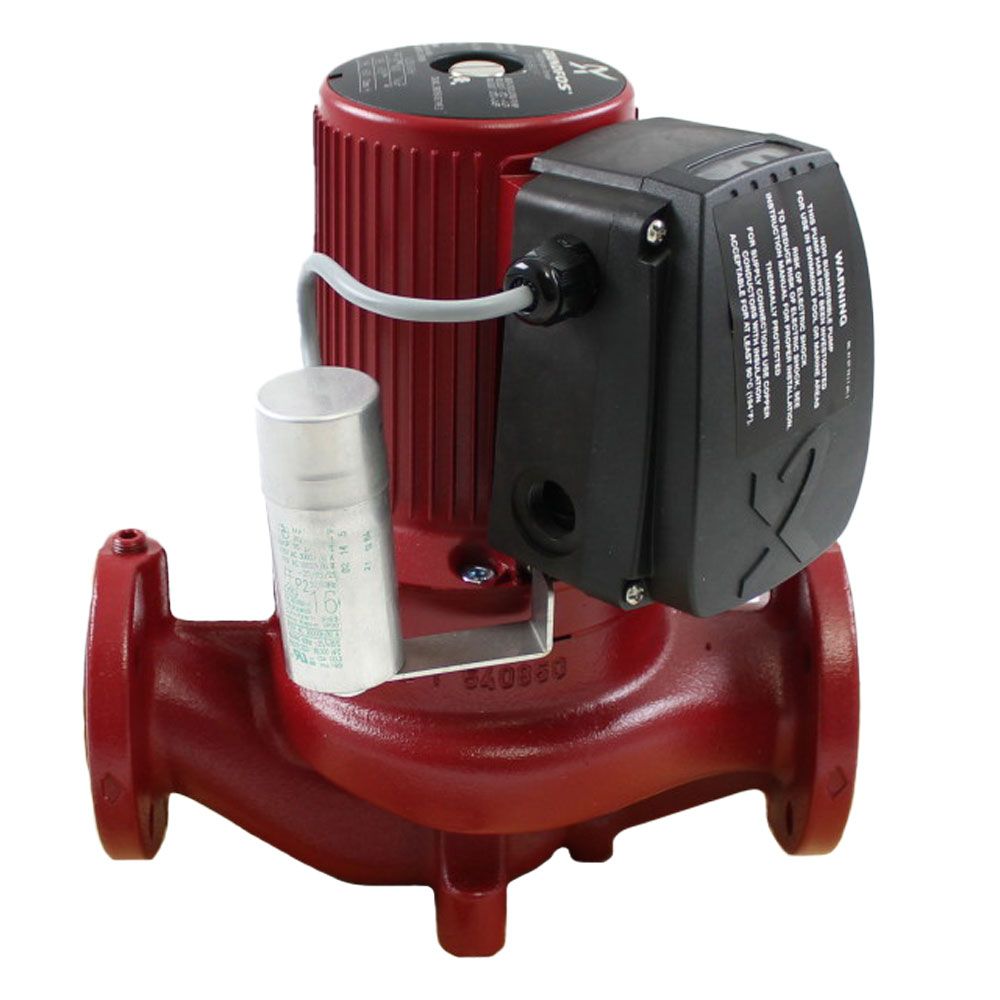

Grundfos 96402836 UPS 50-80/2 F 200 Series Circulator Pump with Relay - 1 PH, 230V

Product Description

The Grundfos 96402836 UPS 50-80/2 F 200 Series Circulator Pump is designed for efficient liquid circulation in heating and air conditioning systems. This model features a 1-phase, 230V motor and includes a relay for smooth operation.

• 1-phase motor
• 230V rated voltage
• Maximum operating pressure of 145 PSI

Product Highlights

This pump integrates a 3-speed motor, ensuring optimal performance and energy efficiency. Its wet rotor design ensures the longevity of the pump and reduces maintenance needs. The cast iron construction provides durability, and the pump's bearings are lubricated by the liquid being circulated, eliminating the need for routine lubrication.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402836

Technical Specifications

• Grundfos Series: UPS Series
• Model: UPS50-80/2F
• Pump Construction: Cast Iron
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 2
• Pump Connection: Threaded
• Flanges Included: No
• Motor HP: 3/4 HP
• Motor RPM: 3-Speed
• Motor Voltage: 230V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Max Temp: 230°F
• Potable Water: No
• UPC: 5700390683276
• Replaces: 96404959
• Alias: UPS50-80/2F-230V
• Weight: 55.00
