Product Description

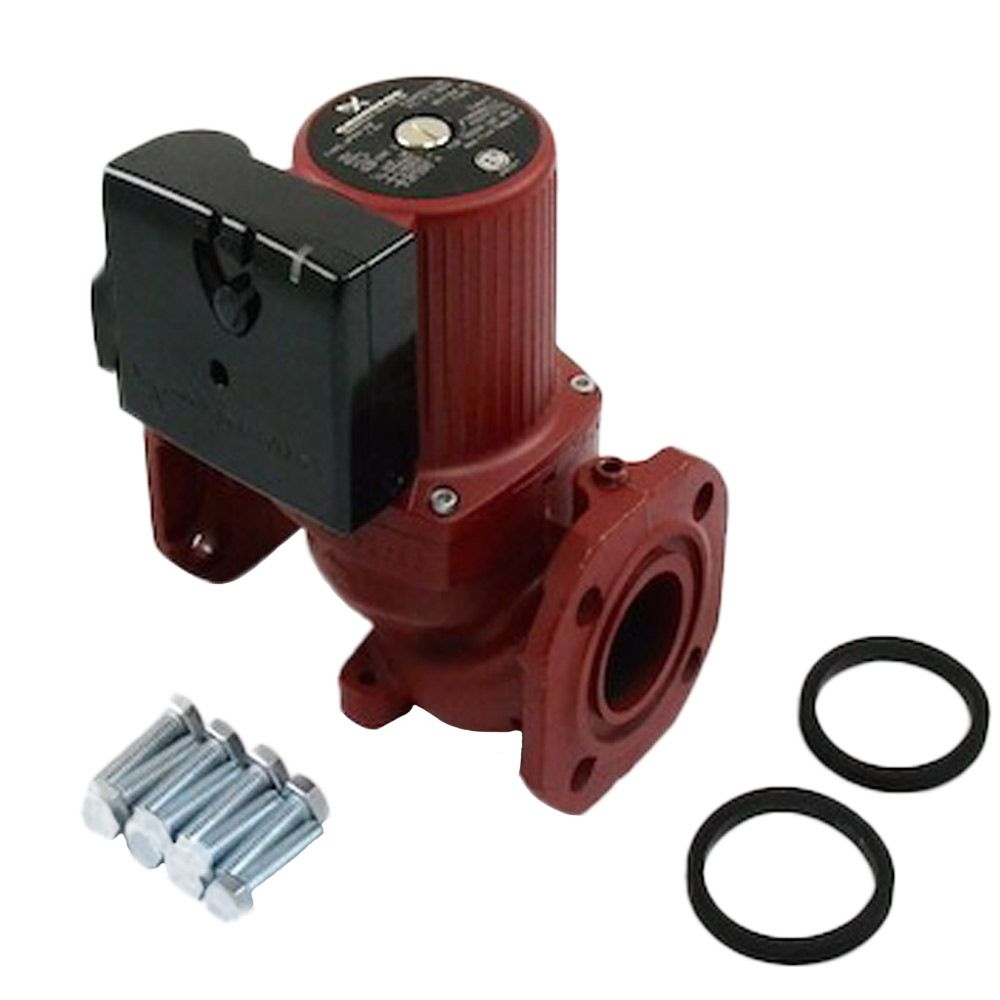

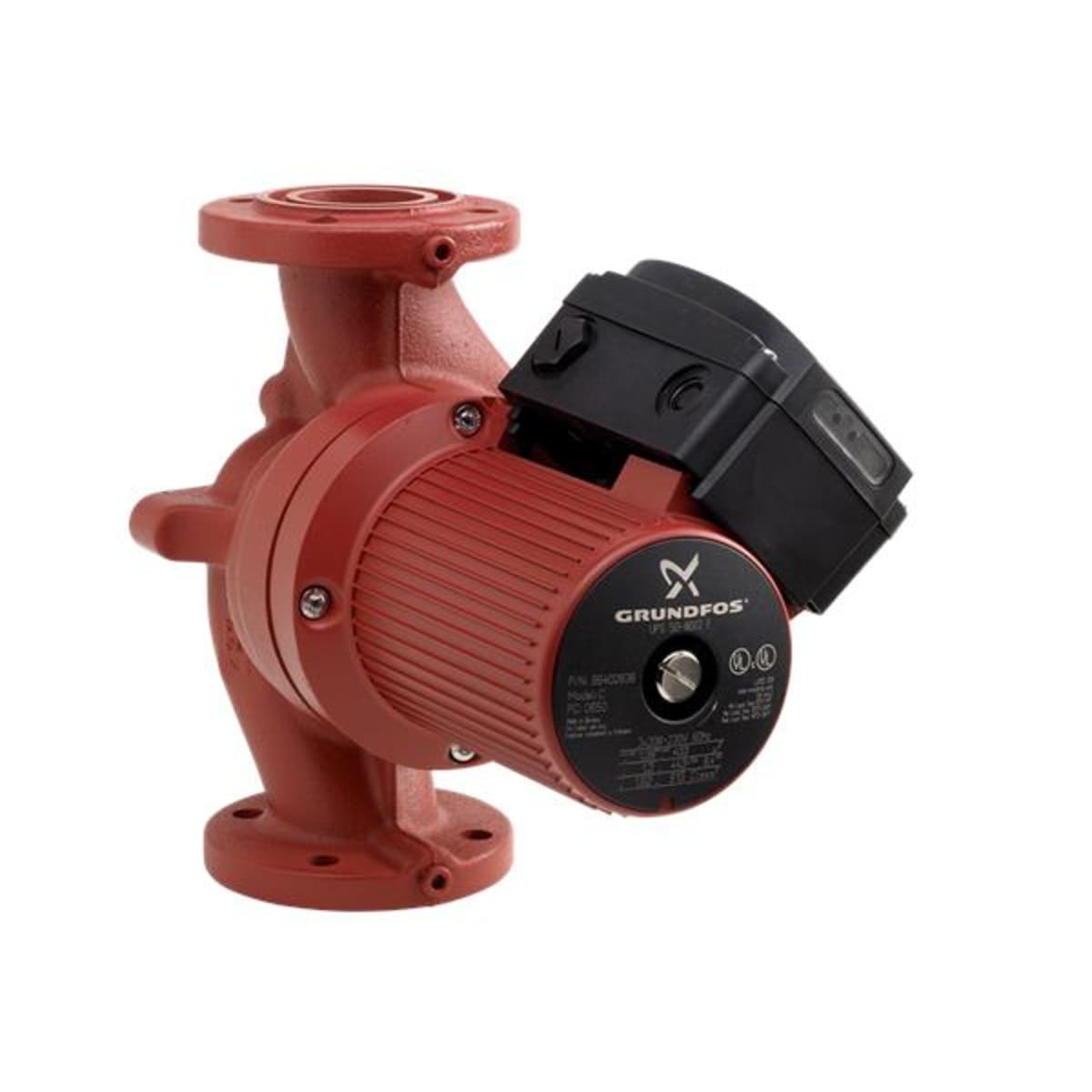

The Grundfos UPS50-60F model 97523134 is a high-performing cast iron circulator pump designed for reliable operation in residential and commercial HVAC systems. Engineered to facilitate the circulation of liquids, this pump integrates advanced motor technology with durable materials to enhance system efficiency and longevity.
- Features exclusive 3-speed motor technology that optimizes hydraulic performance and reduces energy consumption.
- Maintenance-free design with built-in motor protection guarantees long operational life and exceptional reliability.
- Equipped with a thermal overload switch and corrosion-resistant materials for enhanced durability and performance in various environments.
Product Highlights
This Grundfos circulator pump is ideal for heating and cooling applications, offering a flow rate of up to 124 gallons per minute and a maximum head of 21.33 feet. The noise-reduced operation and robust cast iron construction make it a preferred choice for systems requiring continuous and efficient liquid movement.
Product Information
Standard Information
-
Style: Circulator
-
Material: Cast Iron
Technical Specifications
-
Voltage: 115 Volts
-
Power Source: AC/DC
-
Weight: 22.84 Pounds
-
Dimensions: 8-5/8 inches Width x 8-1/2 inches Height
-
Maximum Temperature: 230 degrees Fahrenheit
- Amperage Rating: 2.7 to 3.6 A
- Frequency Rating: 60 Hz
- Maximum Pressure: 145 psi
