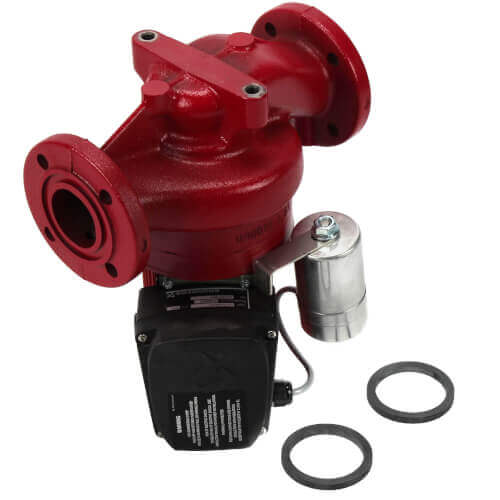

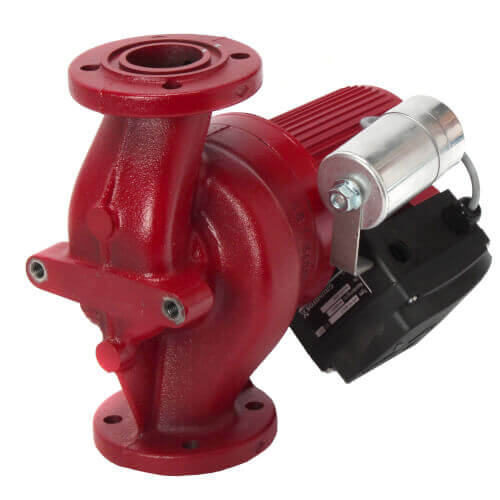

Grundfos 96402861 UPS50-160/2 460V 1-1/2 HP 2-Speed Cast Iron Circulator Pump

SKU / MPN: 96402861


In Stock - Ships Same Day if Ordered by 12pm



100% Fit



HAVE A QUESTION? Our friendly team is ready to help!

Product Information

Product Description

The Grundfos 96402861 provides robust functionality as a 2-speed cast iron circulator pump. Ideal for hydronic heating systems, this unit ensures efficient and continuous circulation. The UPS50-160/2 model, operating at 460V with a powerful 1-1/2 horsepower motor, is perfect for both commercial and residential setups.

  • Durable construction with cast iron housing for enhanced longevity.
  • Features a maintenance-free, wet-rotor design with built-in thermal protection ensuring quiet operation and reduced energy consumption.
  • Easy integration into existing piping systems with 2-inch NPT connections.

Product Highlights

Designed for long-term performance, the Grundfos UPS50-160/2 pump is equipped with technology that supports varied flow needs. It is engineered without a mechanical seal, reducing leakage risks and maintenance demands.

Product Information

Standard Information

  • Weight: 71 pounds
  • Temperature capacity: Up to 230 degrees Fahrenheit

Technical Specifications

  • Motor Phase: 3 phases
  • Speed Settings: 2 speeds
  • Maximum Head: 52.5 feet
  • Maximum Flow: 74.2 GPM
  • Electricity Use: 1.5 to 2 Amps
  • Pressure Capacity: 145 psi
