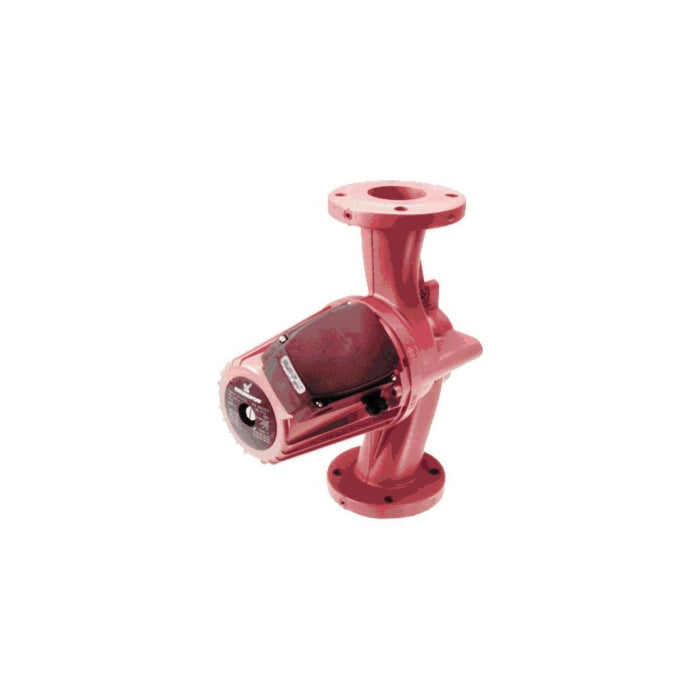

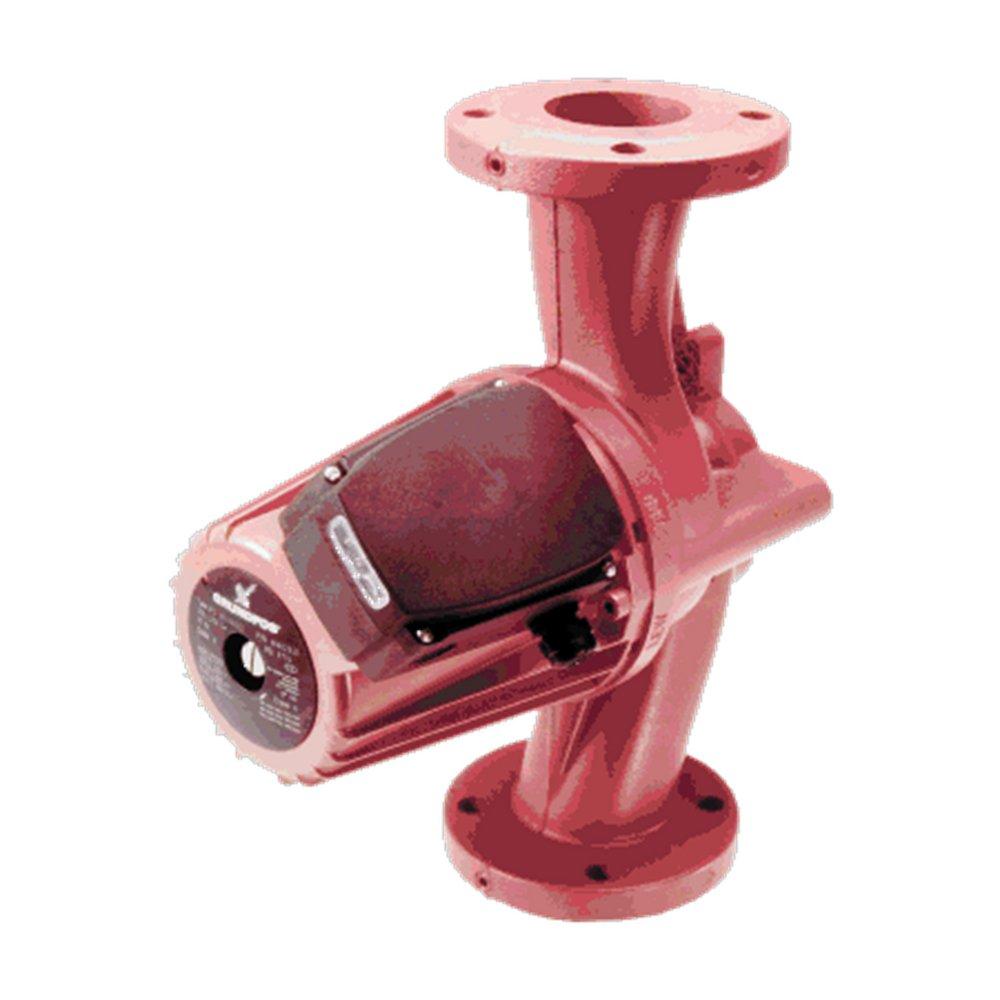

Grundfos 96402762 Water Lubricated Circulating Pump 3/4 HP 115V

Product Description

The Grundfos 96402762 is a water lubricated circulating pump designed for heating and air conditioning systems. This pump is effective for large residential and commercial applications. It features a robust cast iron construction with a three-speed motor that enhances efficiency and reduces noise.

• Water lubricated design for reduced maintenance
• Includes built-in thermal overload switch for protection
• Compatible with various heating and cooling applications

Product Highlights

This pump provides reliable circulation of liquids in numerous heating systems.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402762

Technical Specifications

• Power Rating: 3/4 HP
• Voltage: 115 VAC
• Weight: 38.3 lbs
• Flow Rate: 105 GPM
• Maximum Head: 26-1/4 ft
• Amperage Rating: 4.4 to 4.45 A
• Motor Speed: 3194 to 3455 RPM
• Temperature Rating: 32 to 104 deg F Ambient
• Enclosure Type: X4D
• Maximum Pressure: 145 PSI
• Frequency: 60 Hz
• Phase: 1
