Grundfos 96402748 UPS40-40F Circulator Pump 1-1/2 Flg 1/3HP 115V 3-Speed

Product Description

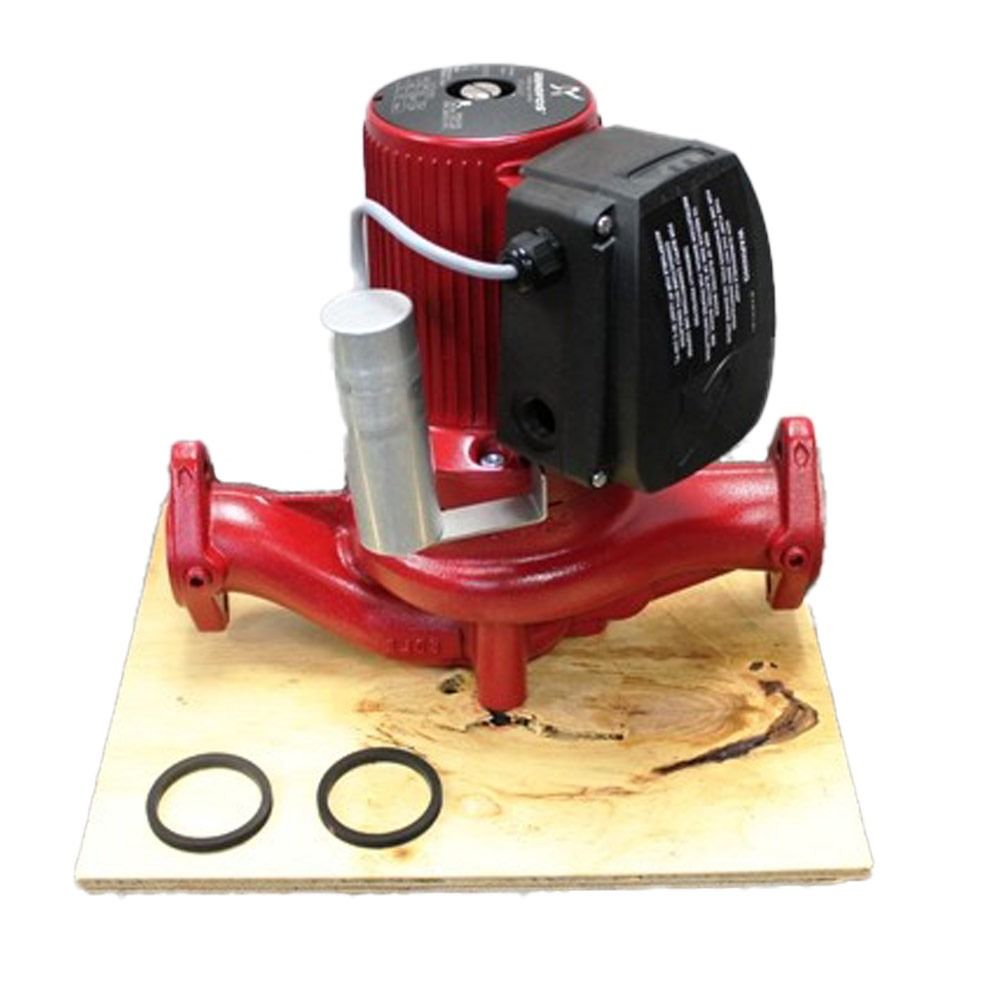

The Grundfos 96402748 is a model UPS 40-40 F circulator pump. It is constructed from cast iron and features 1-1/2 inch two-bolt flanges. This pump operates with a 1/3 horsepower, 1750 rpm, 115-volt, single-phase motor with three-speed capability.

• Cast Iron Construction
• 1/3 HP Motor
• Three-Speed Operation

Product Highlights

This circulator pump is suitable for heating and air conditioning systems. It fits large residential and commercial applications. The pump is designed for variable speed operation, allowing it to adapt to different system requirements.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96402748

Technical Specifications

• Model: UPS40-40F
• Pump Construction: Cast Iron-CI
• Pump Type: Variable Speed
• Pump Class: Booster
• Pump Mounting: In-Line
• Pump Connection Size: 1-1/2 inches
• Pump Connection: Flanged
• Motor HP: 1/3 HP
• Motor RPM: 1750 rpm
• Motor Voltage: 115V
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Max Temperature: 230 degrees F
• Potable Water: No
• Weight: 49.00 lbs
• UPC: 5700390679996
