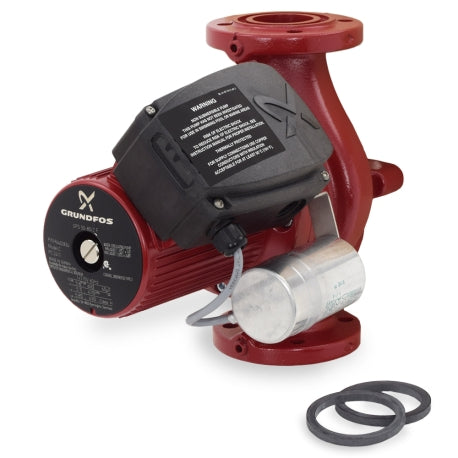

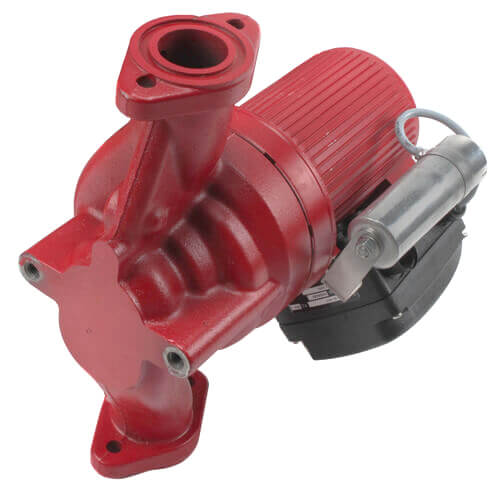

Grundfos UPS40-160/2 VersaFlo 3-Speed Cast Iron Circulator Pump 115V

Product Description

The Grundfos UPS40-160/2 is a VersaFlo series, commercial-grade cast iron 3-speed circulator pump with GF40/43 flanged connections, intended for heating and cooling applications. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation.

• 3 Speed Motor Technology - Reduces Noise & Power Consumption
• Exclusive Wet Rotor Technology Up To 3 HP
• Built-In Motor Protection For Long Life

Product Highlights

This circulator pump features a 3-speed switch, self-venting, thermal overload switch, and whisper-quiet operation. It is maintenance-free with quick connectivity to terminals for easy installation.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UPS40-160/2

Technical Specifications

• Manufacturer: Grundfos
• Part Number/SKU: UPS40-160/2
• Frequency: 60 Hz
• Material: Cast Iron
• Type: 3-Speed Pump
• Voltage: 115V
• Horse Power: 3/4
• Speeds: 3
• Max Head (Ft): 52.5
• Max Flow (GPM): 48
• Max Pressure (PSI): 145
• Phase: 1
• Mount: In-Line
• Connection Type: Flanged x Flanged
• Casing: Cast Iron
• Connections: Flanged (GF40/43)
• Circulator Height (Flange to Flange): 11-1/2"
• Electrical Specs: 115V, 60 Hz, 890W max, 8.4 Amps max; 250V Capacitor
• Head Range: 0-52.5 ft
• Flow Range: 0-110 GPM
• Operating Temperature Range: 14°F - 248°F
• Max Operating Pressure: 145 psi
• Sound Pressure Level: 40 dB
• Dimensions (Depth x Width x Height): 11.69" x 9.69" x 11.50"
• Weight (lbs): 46 lbs
