Grundfos UPS32-160/2 circulator pump 115V

Product Description

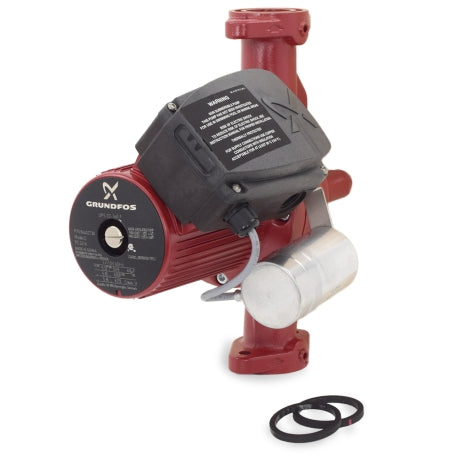

The GRUNDFOS UPS32-160/2 is a VersaFlo series, commercial-grade cast iron 3-speed circulator pump with GF40/43 flanged connections, intended for heating and cooling applications. It features a 3-speed switch for versatility, a self-venting feature to prevent air locks, and a built-in thermal overload switch.

• 3-speed switch (Lo/Med/Hi) provides versatility for various applications
• Self-venting feature helps to prevent air locked circulator and eliminate unwanted noise
• Built-in thermal overload switch

Product Highlights

This circulator pump ensures whisper-quiet, maintenance-free operation with easy installation and a power LED indicator. Suitable for pumping up to 50/50 glycol & water mix solution.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UPS32-160/2

Technical Specifications

• MPN: UPS32-160/2
• Product SKU: 96402730
• Brand: Grundfos
• Part #: 96402730
• Casing: Cast Iron
• Circulator Pump Type: 3-Speed
• Connections: Flanged (GF40/43)
• Circulator Height (Flange to Flange): 13-1/2"
• Electrical Specs: 115V, 60 Hz. 625W max, 5.8 Amps max; 250V Capacitor
• Head Range: 0-52.5 ft
• Flow Range: 0-75 GPM
• Operating Temperature Range: 140F - 2480F
• Max Operating Pressure: 145 psi
• Sound Pressure Level: 40 dB
• Dimensions (Depth x Width x Height): 12.16" x 8.31" x 13.50"
• Weight (lbs): 48.8 lbs
