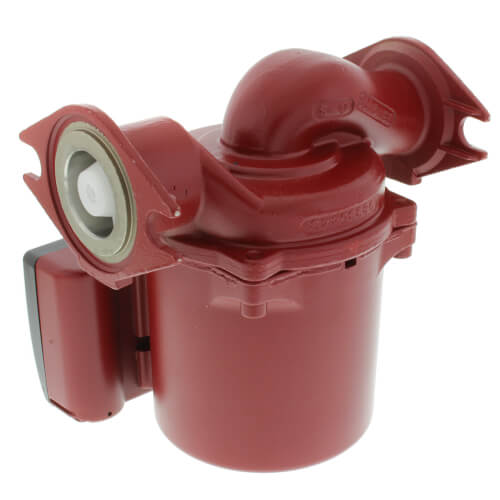

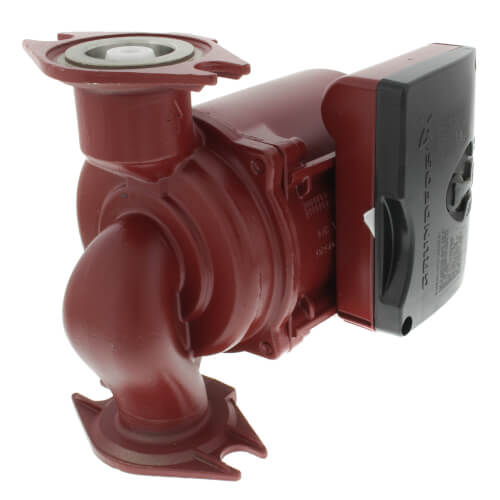

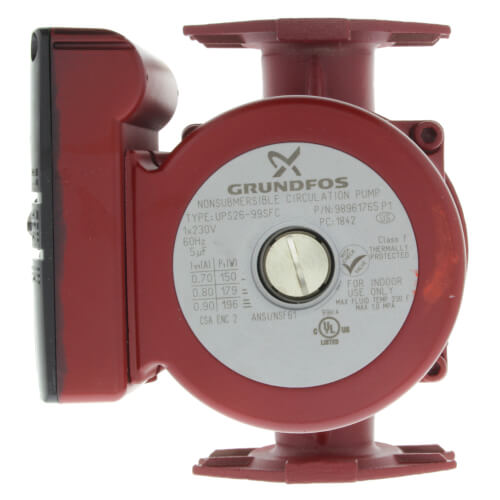

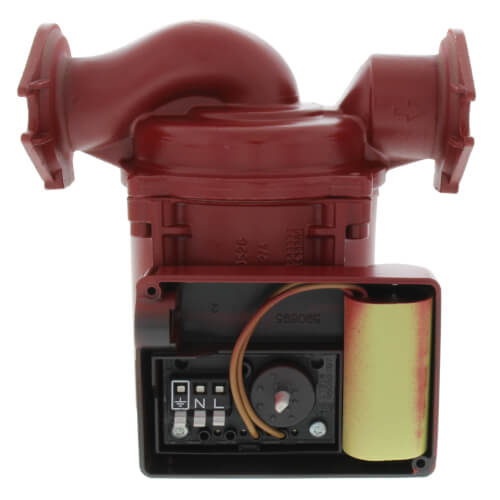

Grundfos UPS26-99SFC Stainless Steel Circulator Pump 1/6HP 230V 1Ph 3-Speed 98961765

Product Description

The Grundfos UPS26-99SFC is a robust stainless steel circulator pump designed for hydronic heating in closed loop systems. It features a 1/6 HP, three speed, 230V single-phase motor. Flange gaskets are included, flanges are available separately.

• Integrated thermal overload switch and maintenance-free operation.
• Corrosion-resistant impeller and stainless steel pump housing.
• Quiet operation suitable for underfloor heating systems.

Product Highlights

This pump is suitable for a variety of installation environments due to its corrosion resistance and quiet operation. It integrates easily with existing systems and requires minimal maintenance. Essential for effective energy and fluid flow management within residential and commercial buildings.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98961765
• Type: Circulator Pump

Technical Specifications

• Power: 1/6 HP
• Voltage: 230 VAC
• Phase: Single
• Speed: Three-speed
• Maximum Head: 28.87 feet
• Maximum Flow Rate: 17.6 gpm
• Maximum Pressure: 145 psi
• Temperature Range: Up to 140 degrees Fahrenheit
