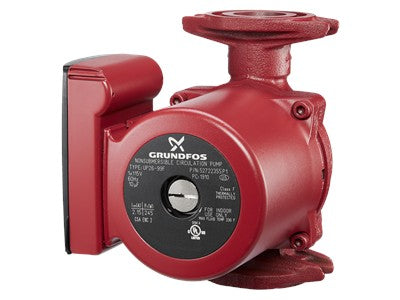

Grundfos UP26-99SF Up 26-99 F S

Product Description

The GRUNDFOS UP26-99SF is a single-speed circulator pump with a corrosion-resistant stainless-steel pump housing designed for hot-water recirculation. The pump provides reliable and maintenance-free operation. Suitable for residential hot water recirculation, this pump is engineered for durability and consistent performance.

• Suitable for Residential hot water recirculation
• Corrosion-resistant stainless-steel pump housing
• Designed for hot-water recirculation

Product Highlights

Designed for hot-water recirculation, the GRUNDFOS UP26-99SF provides reliable and maintenance-free operation.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP26-99SF

Technical Specifications

• Speed Number: 1
• Max flow: 33.9 US gpm
• Maximum head: 32.15 ft
• Approvals: UL, CSA
• Pump housing: Stainless steel
• EN: 1.4301
• Impeller: Composite, PES
• Maximum ambient temperature: 104 °F
• Ambient max at 176°F liquid: 176 °F
• Maximum operating pressure: 145.04 psi
• Type of connection: USA Oval
• S.S. Flange: 2 - Bolt Flange
• Pipe connection: 2 - Bolt Flange
• Pressure rating for connection: PN 10
• Port-to-port length: 6 1/2 in
• Terminal box position: 9H
• Pumped liquid: Water
• Liquid temperature range: 32 .. 230 °F
• Selected liquid temperature: 68 °F
• Density: 62.29 lb/ft³
• Max. power input: 245 W
• Main frequency: 60 Hz
• Rated voltage: 1 x 230 V
• Current in speed 3: 1.07 A
• Capacitor size - run: 2.5 F/380 V
• Number of poles: 2
• Insulation class (IEC 85): F
• Ex-protection standard: CONTACT
• Thermal protec: internal
