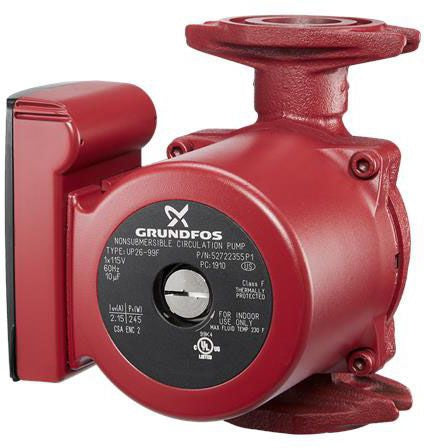

Grundfos 98961756 Flanged x Flanged Circulator Pump 205 Watt 115 VAC 60 Hz 1-Phase Replacement MPN

Product Description

The Grundfos circulator pump, MPN 98961756, is designed for efficient circulation in plumbing applications. This model is a 1-speed, canned rotor pump with flanged connections for easy installation.

• Power Output: 205 watts
• Maximum Discharge Head: 29.86 feet
• Casing Material: Stainless steel

Product Highlights

This pump is suitable for hot water recirculation and can be used in HVAC systems. It features a built-in motor which enhances reliability and reduces maintenance.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98961756

Technical Specifications

• Type: Canned Rotor
• Power Rating: 205 Watts
• Input Supply Rating: 115 Volt AC, 60 Hertz, 1-Phase
• Amperage Rating: 1.7 A
• Maximum Temperature: 176 Deg F
• Flow Rate: 28.2 GPM
• Pressure Rating: 145.04 PSI

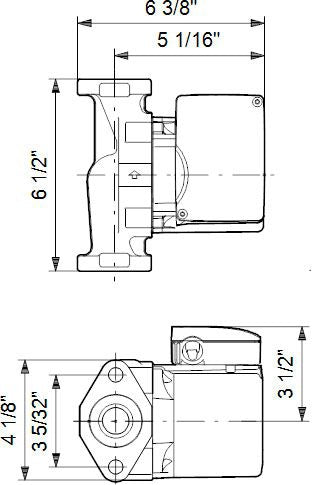

• Overall Dimensions: 6-3/8 inches Length x 4-1/8 inches Width x 6-1/2 inches Height
• Shaft Material: Ceramic
• Impeller Material: Composite, PES
• Casing Material: Stainless Steel
• Application: Plumbing Hot Water Recirculation, HVAC/Residential Heating
• Standards: UL, CSA
