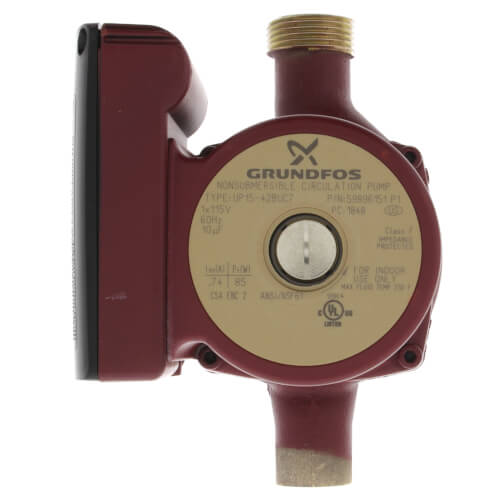

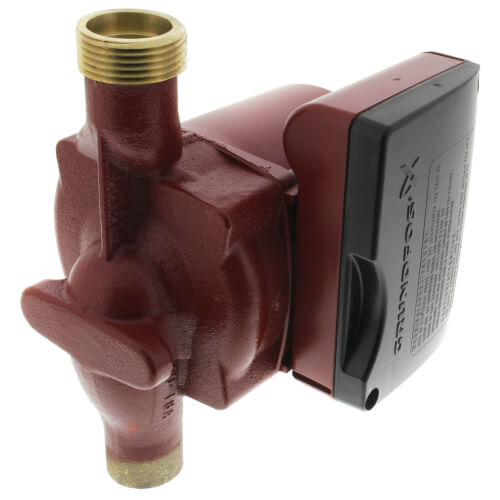

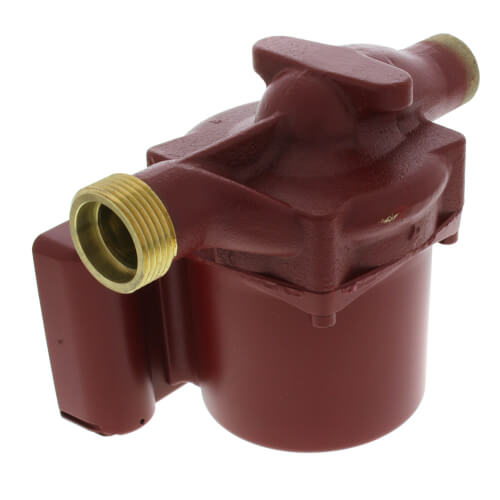

Grundfos UP15-42BUC7 Bronze Circulator Pump with Check Valve 1/25 HP 115V

Product Description

The GRUNDFOS UP15-42BUC7 is a bronze circulator pump designed for efficient water circulation. Operating at 115V with a 1/25 HP motor, it features a built-in check valve and a sweat connection. This pump is suitable for drinking water applications and underfloor heating systems, offering a maximum flow rate of 17 GPM and a maximum pressure of 145 PSI.

• Operates at 115V with a 1/25 HP motor for reliable performance.
• Features a bronze pump housing and sweat connection, ideal for drinking water applications.
• Provides a maximum flow rate of 17 GPM and a maximum pressure of 145 PSI.

Product Highlights

Bronze circulator pump with check valve, suitable for drinking water and underfloor heating.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP15-42BUC7

Technical Specifications

• Type: 1-Speed Pump
• Horse Power: 1/25
• Voltage: 115V
• Housing Material: Bronze
• Max Pressure (PSI): 145
• Connection Size: 3/4"
• Max Flow (GPM): 17
• Flow Range (GPM): 0-17
• Max Head (Ft): 15
• Head Range (Ft): 0-15
• Wattage: 85
• Amperage: 0.74
• Connection Type: Sweat
• Approvals: UL, CSA
• Built-in Valves: Isolating and Non-Return
• Impeller Material: Composite, PES
• Maximum Ambient Temperature: 104 °F
• Pressure Rating for Connection: PN 10
• Terminal Box Position: 9H
• Pumped Liquid: Water
• Liquid Temperature Range: 35.6 .. 204.8 °F
• Main Frequency: 60 Hz
• Number of Poles: 2
• Insulation Class (IEC 85): F
• Thermal Protection: internal
