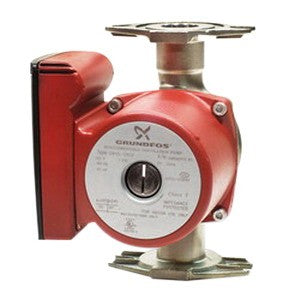

Grundfos UP15-29SF 1-Phase Circulator Pump 1/12 HP 115V

Product Description

The Grundfos UP15-29SF 1-Phase Circulator Pump is a reliable solution for water circulation. Ideal for both residential and commercial applications, this pump offers dependable performance and easy installation.

• 1/12 HP motor
• Stainless steel housing
• 115V voltage rating

Product Highlights

The Grundfos UP15-29SF pump is designed for longevity and efficiency. Suitable for various water circulation tasks, it features a radial bearing type and a ceramic shaft for enhanced durability.

Product Information

Standard Information

• Brand: Grundfos Pumps
• MPN: UP15-29SF
• Category: Circulator Pumps

Technical Specifications

• HP Rating: 1/12 HP
• Bearing Type: Radial
• Flange Connection: GF15/26
• Density: 62.4 lb/cu. ft.
• Drive: Wet Rotor
• Maximum Head: 9.84 ft
• Housing: Stainless Steel
• Impeller: Composite, PES
• Temperature Rating: 36 to 230 Deg F
• Pressure Rating: 145 psi
• Maximum GPM: 20.7 gpm
• Phase: 1-Phase
• Shaft: Ceramic
• Speed: 1 Speed
• Thermal Protection: Internal
• Mount: In-Line
• Voltage Rating: 115V
• Pole: 2 Pole
• Frequency Rating: 60 Hz
• Length: 5-8/16 inches
• Width: 4-7/8 inches
• Height: 6-8/16 inches
• Warranty: 2 yr. Limited
• Standards: cUL Listed, CSA Certified
