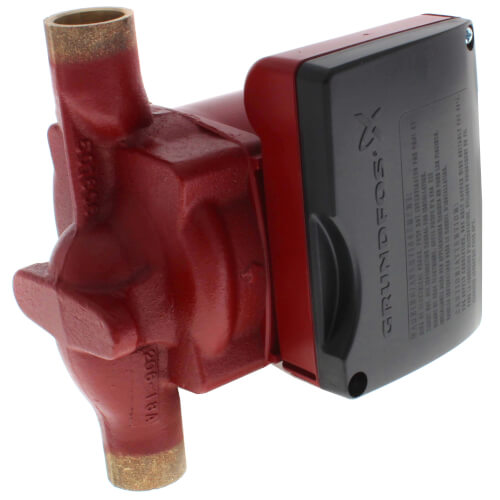

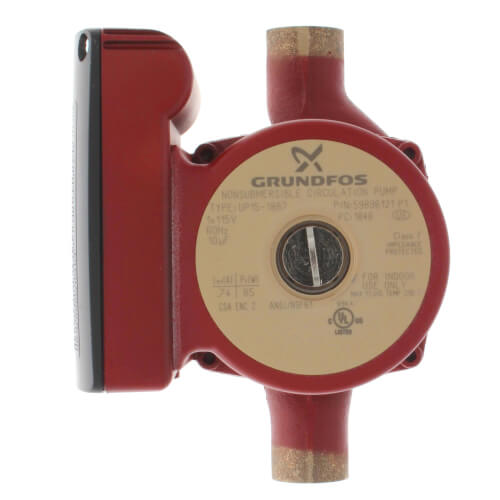

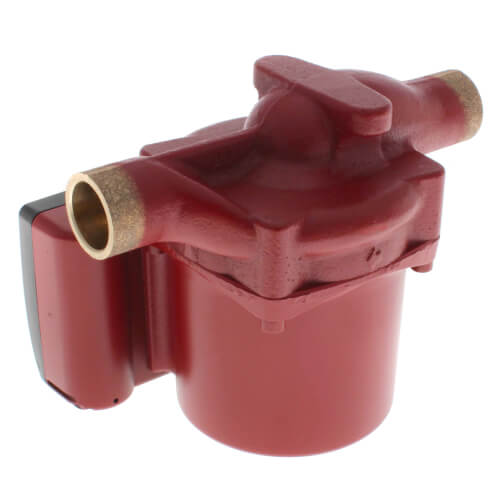

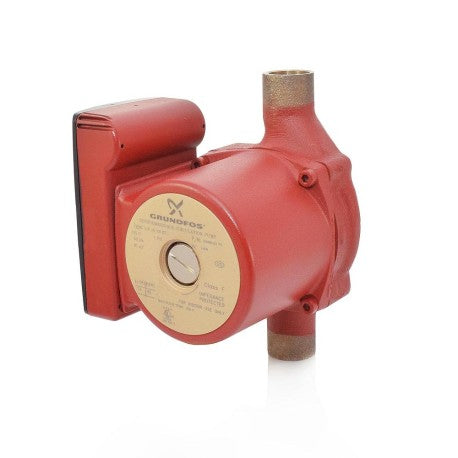

Grundfos UP15-18B7 Bronze Circulator Pump, 1/25 Hp, 115v

Product Description

The GRUNDFOS UP15-18B7 is a bronze circulator pump with 3/4" sweat connections. Commonly used in hot water recirculation, solar heating, chilled water cooling, radiant and other types of open or closed loop heating systems. The bronze pump housing offers improved corrosion resistance, while built-in thermal protection extends the circulator's life.

• Built-in motor protection for long life.
• Multiple accessories for a variety of applications
• Whisper-quiet operation for sound sensitive installations

Product Highlights

This bronze circulator pump is ideal for various applications, including hydronic heating with potable water and fan coil heating.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP15-18B7
• Country of Origin: Domestic

Technical Specifications

• Type: 1-Speed Pump
• Material: Bronze
• Poles: 2
• Horse Power: 1/25 hp
• Frequency: 60 Hz
• Mount: In-Line
• Application: Heating
• Voltage: 115V
• Amperage: 0.74
• Max Pressure (PSI): 145
• Connection Size: 3/4"
• Flow Range (GPM): 0-14.7
• Max Flow (GPM): 14.7
• Max Head (Ft): 14
• Head Range (ft.): 0-14
• Hertz: 60
• Phase: 1
• Temperature Range (F): 36 F - 230 F
• Connection Type: Sweat
• ANSI: ANSI 61
• Depth: 5-1/4
• Discharge Pressure: 5.96
• Energy Star Compliant: No
• Height: 6-3/16
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 6-5/7
• Maximum Feet of Head: 14
• Maximum Temperature: 230
• Minimum Temperature: 36
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 145 psi
• Product Type: Circulator Pump
• Pump Body Material: Bronze
• Pump Phase: 1
• UL Listed: Yes
• Watts: 86
• Weight: 5.27
• Width: 5-3/20
