Product Description

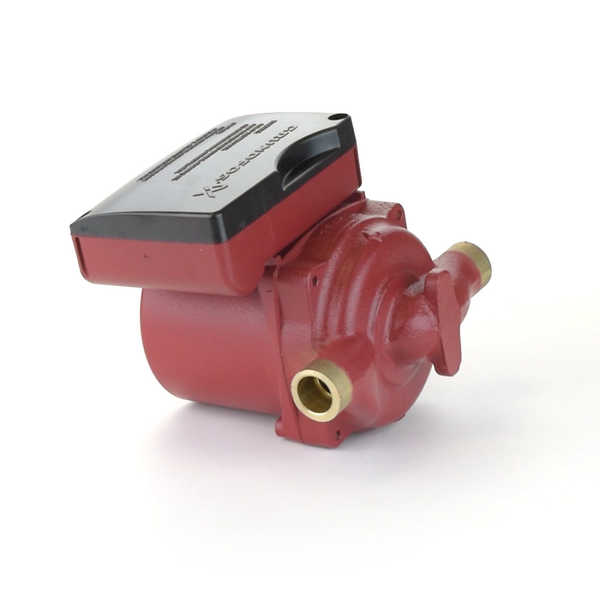

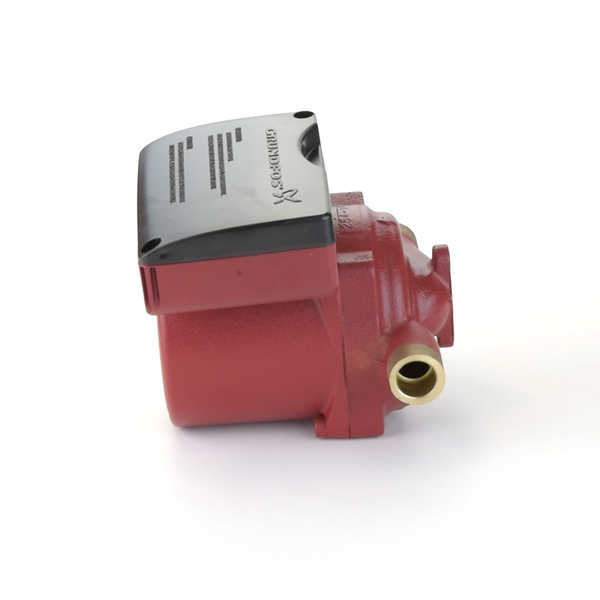

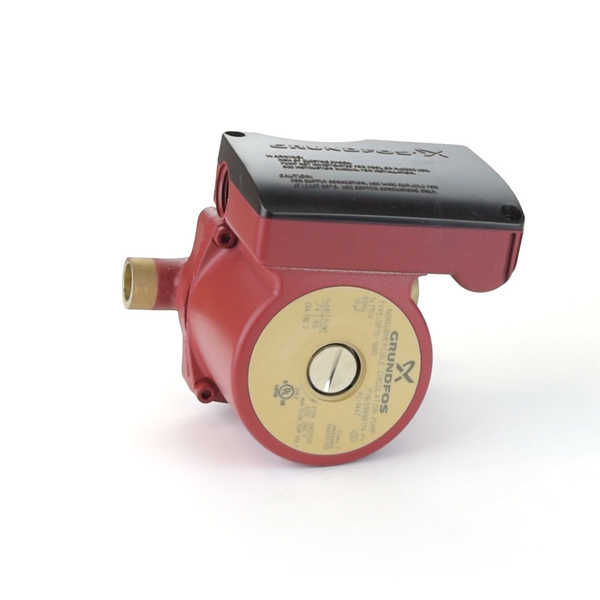

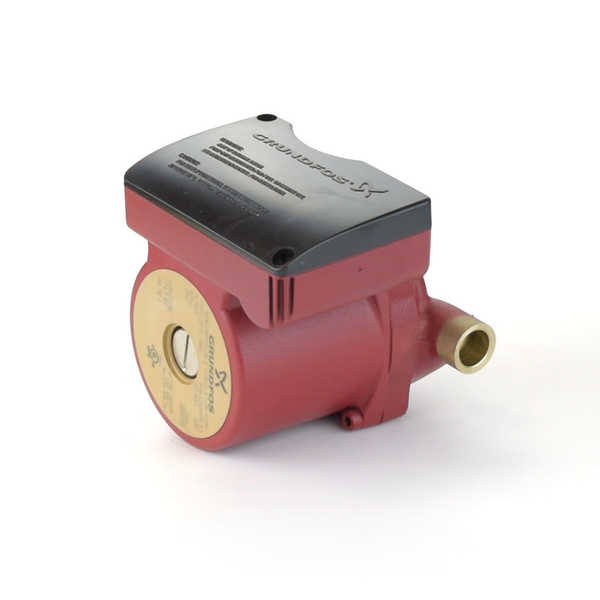

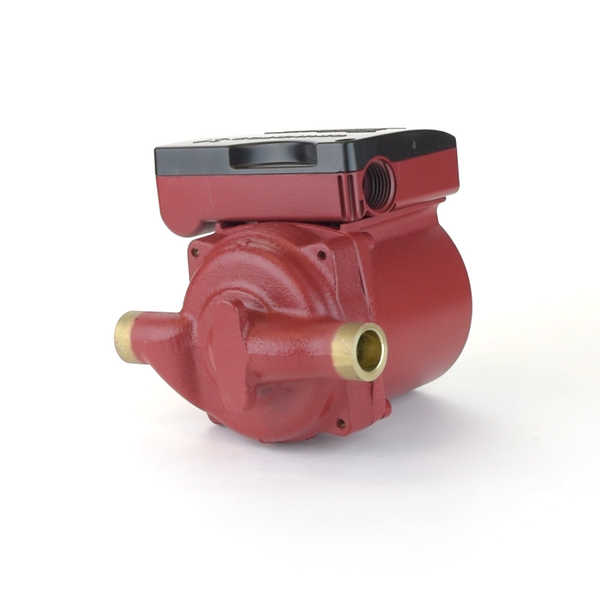

The GRUNDFOS UP15-18B5 is a 115V 1/25 Hp 1-speed bronze circulator pump designed for various applications. It features a 1/2 inch sweat mount connection and is suitable for hydronic heating with potable water, fan coil heating, and underfloor heating systems. This model is also well-suited for hot water recirculation and other open system types like radiant and solar.
- Built-in motor protection for extended operational life.
- Features whisper-quiet operation for sound-sensitive installations.
- Equipped with a bronze pump housing, suitable for drinking water applications.
Product Highlights
Ideal for hydronic heating, underfloor heating, hot water recirculation, and open system applications.
Product Information
Standard Information
-
Brand: GRUNDFOS
-
Manufacturer Part Number: UP15-18B5
-
Country of Origin: United States
Technical Specifications
-
Brand: GRUNDFOS
-
MPN: UP15-18B5
-
Input Voltage: 115V
-
Horsepower: 1/25 Hp
-
Speed: 1 Speed
-
Material: Bronze
-
Connection Size: 1/2 inch
-
Connection Type: Sweat Mount
-
Product Type: Circulator
-
Model Number: 59896114
-
Grundfos Specific Part Number: 59896118
-
Frequency: 60 Hz
-
Poles: 2
-
Mount Type: In-Line
-
Application: Heating
-
Amperage: 0.74 A
-
Max Pressure: 145 PSI
-
Pump Type: 1-Speed Pump
-
Max Flow: 14.7 GPM
-
Flow Range: 0-14.7 GPM
-
Max Head: 14 Ft
-
Head Range: 0-14 Ft
-
Phase: 1
-
Operating Temperature Range: 36°F - 230°F
-
Rated Flow: 4.93 US gpm
-
Rated Head: 8.846 ft
-
Certifications: UL, CSA
-
Pump Housing Material: Bronze
-
Pump Housing Material Detail 1: CuZn16Si4-C
-
Pump Housing Material Detail 2: ASTM B584 C87500
-
Impeller Material: Composite
-
Impeller Material Detail: PES+30% GF
-
Max Ambient Temperature: 104 °F
-
Ambient Max at Liquid Temp: 176 °F
-
Connection Type Detail: Bronze Sweat
-
Pipe Connection: 1/2" INT. SWEAT
-
Connection Pressure Rating: PN 10
-
Port-to-Port Length: 5 in
-
Terminal Box Position: 9H
-
Pumped Liquid: Water
-
Selected Liquid Temperature: 68 °F
-
Density: 62.29 lb/ft³
-
Max Power Input: 85 W
-
Capacitor Size Run: 10 µF
-
Insulation Class: F
-
Ex-Protection Standard: CONTACT
-
Thermal Protection: Impedance protected
