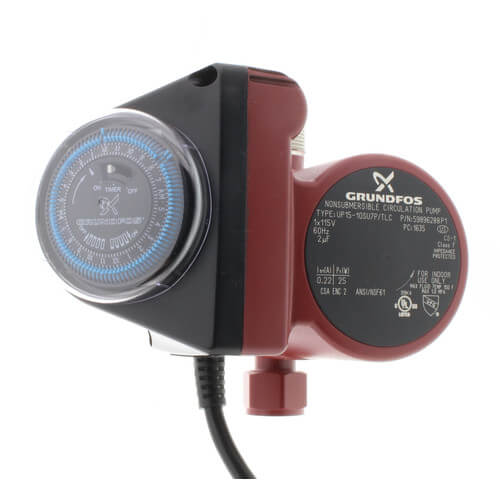

Grundfos UP15-10SU7P TLC Comfort Hot Water Recirculation Pump 115 V

Product Description

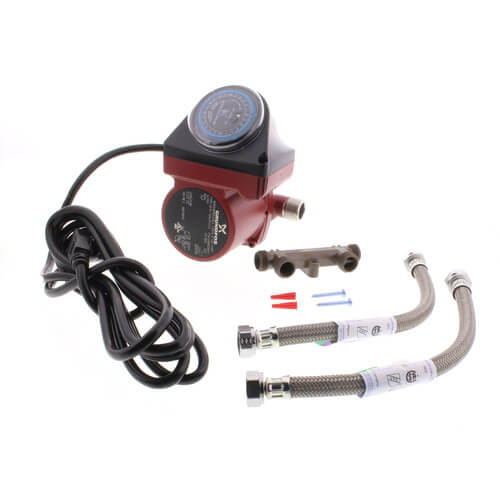

The GRUNDFOS UP15-10SU7P TLC Comfort Series Instant Hot Water System brings hot water recirculation to existing homes. The stainless steel circulator includes a timer and 10-foot power cord and installs directly to the hot water discharge on the water heater. It saves water by sending hot water to the shower much faster.

• No return line required
• Installs in less than one hour
• No electricity needed under the sink

Product Highlights

The Comfort System is designed to give homeowners the added comfort and convenience of instant hot water and reduce the amount of wasted water. Set the timer on the Grundfos pump and stop waiting for hot water.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP15-10SU7P TLC
• Country of Origin: Domestic

Technical Specifications

• Frequency: 60 Hz
• Cord Length: 10 ft
• Material: Stainless Steel
• Horse Power: 1/25 hp
• Voltage: 115V
• Max Pressure (PSI): 145
• Connection Size: 3/4"
• Connection Type: FNPT x MNPT
• Poles: 2
• Type: Pump
• Mounting Type: In-Line
• Max Flow (GPM): 6.5
• Flow Range (GPM): 0-6.5
• Max Head (Ft): 6
• Head Range (ft.): 0-6
• Phase: 1
• Temperature Range (F): 36°F to 150°F
• Includes: Line Cord
• AMP: 0.22
• ANSI: ANSI 61
• Blower Type: 1 Speed
• Depth: 3-11/25
• Discharge Pressure: 1.4
• Energy Star Compliant: No
• Flow Rate: 6.3 gpm
• Height: 6-1/4
• IAPMO Listed: Yes
• Length: 5-9/10
• Maximum Feet of Head: 6
• Maximum Temperature: 150
• Minimum Temperature: 36
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 145 psi
• Product Type: Circulator Pump
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Pump Body Material: Stainless Steel
• Pump Phase: 1
• UL Listed: No
• Watts: 25
• Weight: 5.07
• Width: 3-7/16
