Product Description

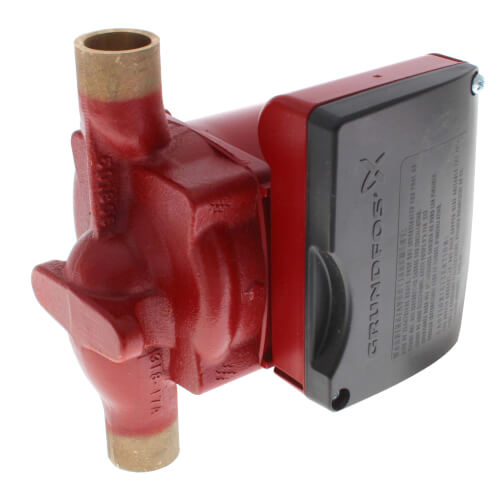

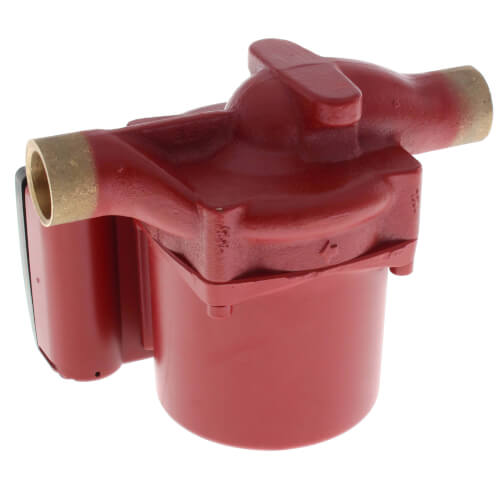

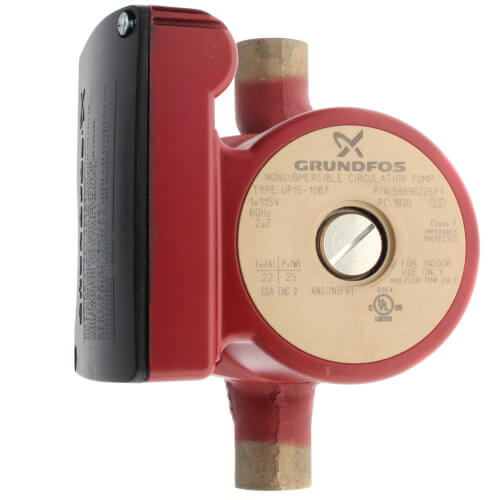

The GRUNDFOS UP15-10B7 is a 1/25HP bronze circulator pump with 3/4" sweat inlet/outlet connections. These connections simplify installation, eliminating the need for pump flanges. The bronze housing protects the pump from corrosion, making it suitable for hot water recirculation, radiant heating, hydronic heating, and hot water storage tanks.
- Ceramic shaft and radial bearings
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, Composite, PES
Product Highlights
This bronze circulator pump is designed for efficient and reliable hot water circulation in various heating applications.
Product Information
Standard Information
-
Brand: GRUNDFOS
-
Manufacturer Part Number: UP15-10B7
-
Country of Origin: Domestic
Technical Specifications
-
Frequency: 60 Hz
-
Type: 1-Speed Pump
-
Material: Bronze
-
Poles: 2
-
Horse Power: 1/25
-
Mount: In-Line
-
Application: Heating
-
Voltage: 115V
-
Amperage: 0.22
-
Max Pressure (PSI): 145
-
Connection Type: Sweat
-
Connection Size: 3/4"
-
Flow Range (GPM): 0-8.2
-
Max Flow (GPM): 8.2
-
Hertz: 60
-
Max Head (Ft): 6.2
-
Head Range (ft.): 0-6.2
-
Phase: 1
-
Temperature Range (F): 36 F - 220 F
-
ANSI: ANSI 61
-
CSA Certified: Yes
-
Depth: 5.25
-
Discharge Pressure: 2.69
-
Energy Star Compliant: No
-
Flow Rate: 8.3 gpm
-
Height: 5.125
-
IAPMO Listed: No
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Length: 5.375
-
Maximum Feet of Head: 6
-
Maximum Temperature: 220
-
Minimum Temperature: 36
-
NSF: NSF 61
-
NSF Certified: Yes
-
Origin: Domestic
-
Product Type: Circulator Pump
-
Pump Body Material: Bronze
-
UL Listed: Yes
-
Watts: 25
-
Width: 5.88
-
Manufacturer: Grundfos
-
Model: UP15-10B7
-
P/N: 59896226
-
OEM: Grundfos
-
OEM #: 59896226
-
Ambient Max At 176 F Liquid: 176 F
-
Approvals Or Certifications: UL, CSA
-
Capacitor Size - Run: 2 F/400 V
-
Flange Standard: USA Sweat
-
Flow U.S. Gpm: 0-8.37
-
Head Feet: 0-6.23
-
Height Inches: 6.375
-
Housing Material: Bronze
-
Impeller Material: Composite, PES
-
Length Inches: 4
-
Max. Amps: 0.22
-
Max. Power Input: 25 W
-
Max. Watts: 25
-
Maximum Ambient Temperature F: 104 F
-
Maximum Fluid Temperature F: 219.2 F
-
Minimum Fluid Temperature F: 35.6
-
Motor Protection: Contact
-
Number Of Poles: 2
-
Number Of Speeds: 1
-
Pipe Connection: 3/4" Sweat
-
Port To Port Length Inches: 6.375
-
Pos Term Box: 9H
-
Pressure Psi: 145
-
System Type: Open
-
Thermal Protection: Internal
-
OVR LENGTH: 6.42"
-
Model Series: UP15
-
Part Type: Circulator Pump
-
Pole: 2
-
Quick Specs: UP15-10B7 115V 60Hz 9H
-
Rotation: Terminal Box Position: 9H
-
Style: Small-Stator UP
-
Input (W): 25W
-
Heads To (Feet): 1.9 m
