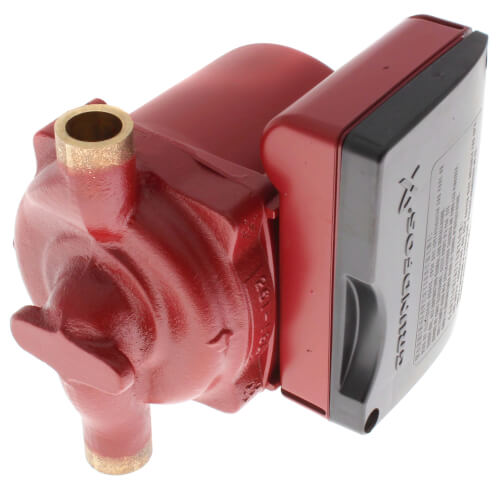

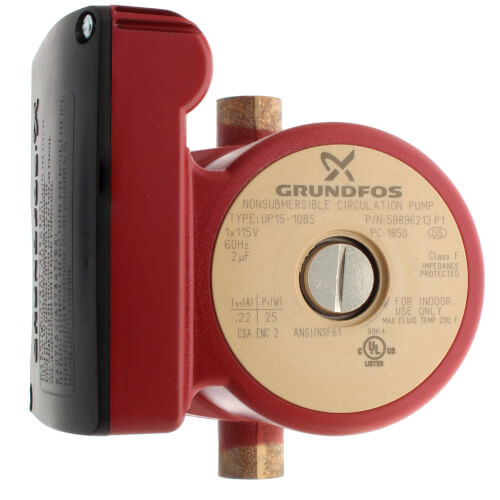

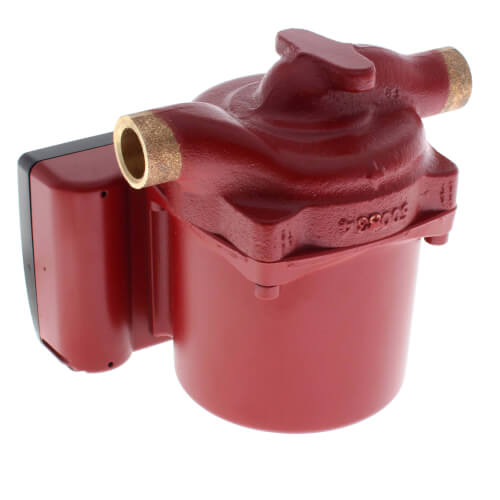

Grundfos UP15-10B5 1/2 inches Sweat 1-Speed Bronze Circulator Pump, 115V, 1/25 HP

Product Description

The GRUNDFOS UP15-10B5 is specifically designed for heating systems, circulation of hot domestic water, and liquid circulation in cooling and air-conditioning systems. It features a ceramic shaft and radial bearings, a carbon thrust bearing, and a corrosion-resistant impeller. The pump housing is made of bronze.

• 115V, 1/25 HP
• Sweat Connection
• Suitable for Residential hot water recirculation

Product Highlights

This bronze circulator pump is ideal for heating, domestic hot water, and cooling systems. Its bronze housing ensures compatibility with potable water, and its efficient design minimizes energy consumption.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP15-10B5
• Country of Origin: US

Technical Specifications

• Frequency: 60 Hz
• Material: Bronze
• Type: 1-Speed Pump
• Voltage: 115V
• Horse Power: 1/25
• Speeds: 1
• Max Head (Ft): 6.23
• Max Flow (GPM): 8.37
• Max Pressure (PSI): 145
• Poles: 2
• Phase: 1
• Mount: In-Line
• Connection Type: Sweat
• Connection Size: 1/2"
• Rated flow: 2.77 US gpm
• Rated head: 3.402 ft
• Approvals: UL, CSA
• Pump housing: Bronze
• Impeller: Composite
• Maximum ambient temperature: 104 F
• Ambient max at 176 F liquid: 176 F
• Maximum operating pressure: 145.04 psi
• Pipe connection: 1/2" INT. SWEAT
• Pressure rating for connection: PN 10
• Port-to-port length: 5 in
• Terminal box position: 9H
• Pumped liquid: Water
• Liquid temperature range: 35.6 .. 230 F
• Selected liquid temperature: 140 F
• Density: 61.35 lb/ft
• Max. power input: 25 W
• Rated voltage: 1 x 115 V
• Current in speed 3: 0.22 A
• Capacitor size - run: 2 F
• Insulation class (IEC 85): F
• Thermal protec: Impedance protected
• Head max: 6.23 ft
• Rated power - P2: 0.04 HP
• AMP: 0.22
• ANSI: ANSI 61
• CSA Certified: Yes
• Depth: 5
• Discharge Pressure: 2.69
• Flow Rate: 8.3 gpm
• Height: 4-11/16
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 5
• Maximum Feet of Head: 6
• Maximum Temperature: 220
• Minimum Temperature: 36
• NSF: NSF 61
• NSF Certified: Yes
• Origin: Domestic
• Pressure - Maximum: 145 psi
• Product Type: Circulator Pump
• Pump Body Material: Bronze
• Pump Phase: 1
• UL Listed: Yes
• Watts: 25
• Weight: 6
• Width: 5-1/2
