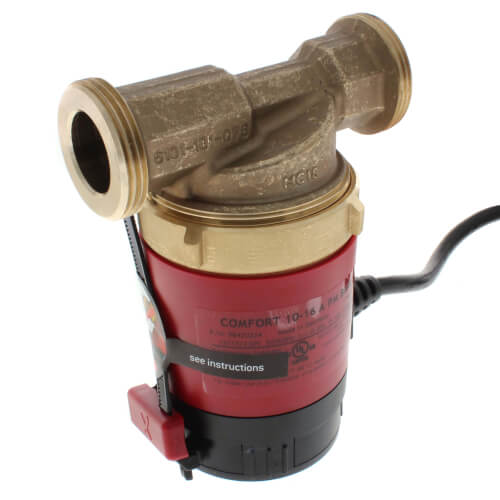

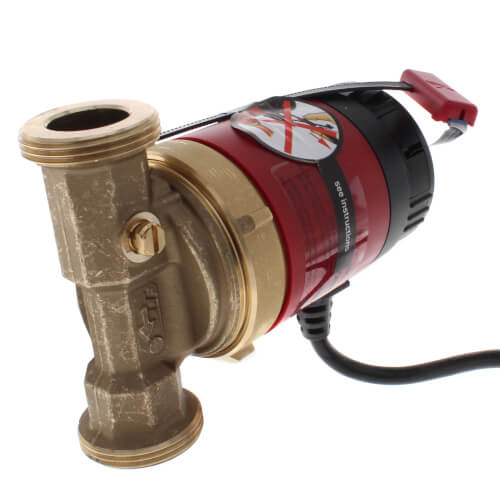

Grundfos UP10-16PMA-BU-LC Up10-16Apmpbu/Lc Pump 115V

Product Description

The GRUNDFOS UP10-16PMA-BU-LC is a high-efficiency, low-energy consumption domestic hot water circulator with a lead-free brass housing. Built with an ECM for maximum performance, the pump provides instant hot water and reduces water waste. Typical applications include water heater storage tanks or systems with a dedicated return line in one- or two-family homes.

• Learns hot water consumption patterns and adjusts operation time accordingly.
• Reduces water heater energy consumption by saving up to 67% compared to a continuously running pump.
• Designed for unlimited water hardness and robust against limescale.

Product Highlights

Features multiple installation positions, dry-running protection, built-in and external temperature sensors, and an insulation shell. Double insulated with a line cord for quick installation.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: UP10-16PMA-BU-LC

Technical Specifications

• Frequency: 60 Hz
• Includes: Aquastat, Line Cord
• Type: Dedicated, Pump
• Connection Size: 1-1/4"
• Connection Type: Union
• Voltage: 115V
• Max Pressure (PSI): 145
• Flow Range (GPM): 0-2.2
• Max Flow (GPM): 2.2
• Head Range (ft.): 0-3.9
• Max Head (Ft): 3.9
• Temperature Range (F): 36 {
