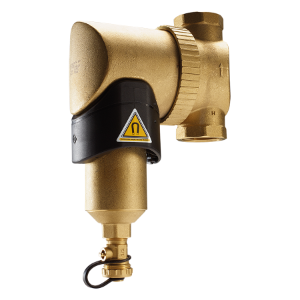

GRUNDFOS TDN150SWM Spirotrap Magnetic Dirt Sep 1-1/2 Sweat

Product Description

The GRUNDFOS TDN150SWM Spirotrap Magnetic Dirt Separator is designed to remove dirt and debris from system fluid effectively. It uses a patented Spirotube mechanism that creates a low-velocity, low-turbulence separation area. This unit supports both horizontal and vertical piping installations, enhancing flexibility in various systems. Added strong magnets around the flow path ensure efficient separation of ferrous particles.

• Universal connection for easy installation
• Efficient dirt separation using magnetic technology
• Compatible with multiple piping orientations

Product Highlights

The Spirotrap is essential for maintaining clean water systems by removing unwanted dirt and debris, thus prolonging the life of plumbing and heating systems.

Product Information

Standard Information

• Brand: GRUNDFOS
• MPN: TDN150SWM

Technical Specifications

• Recommended Flow: 30 GPM
• Pipe-In-Length: 6 inches
• Max Pressure: 150 psi
• Max Temperature: 270°F
• Material: Brass
• Connection: Sweat
