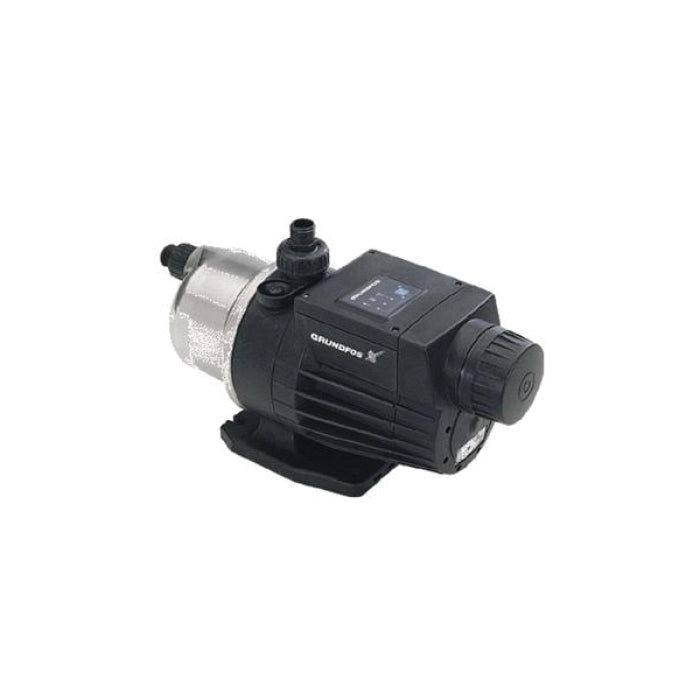

Grundfos 96860195 MQ3-45 A-B-A-BVBP Pressure Booster Pump 1 HP

Product Description

The Grundfos MQ3-45 A-B-A-BVBP Pressure Booster Pump, MPN 96860195, provides reliable water flow for various applications. This pump features a flow rate of thirteen point six gallons per minute and is ideal for domestic, agricultural, and horticultural use.

• Self-priming design for easy installation
• Compact and all-in-one pressure booster unit
• Built-in safety features for long pump life

Product Highlights

This pump efficiently boosts water pressure and is suitable for homes, cabins, and farms. It operates with a power rating of one point five horsepower and runs on one hundred ten to one hundred twenty volts.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96860195

Technical Specifications

• Flow Rate: 13.6 gpm
• Inlet Size: 1 in NPT
• Outlet Size: 1 in NPT
• Maximum Head: 147.6 ft
• Maximum Pressure: 109 psi
• Amperage Rating: 10 A
• Voltage Rating: 110 to 120 VAC
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Temperature Rating: 32 to 113 deg F Ambient
• Material: POM + 25% Glass Fiber
• Impeller Type: PPO + 20% Glass Fiber-PTFE
