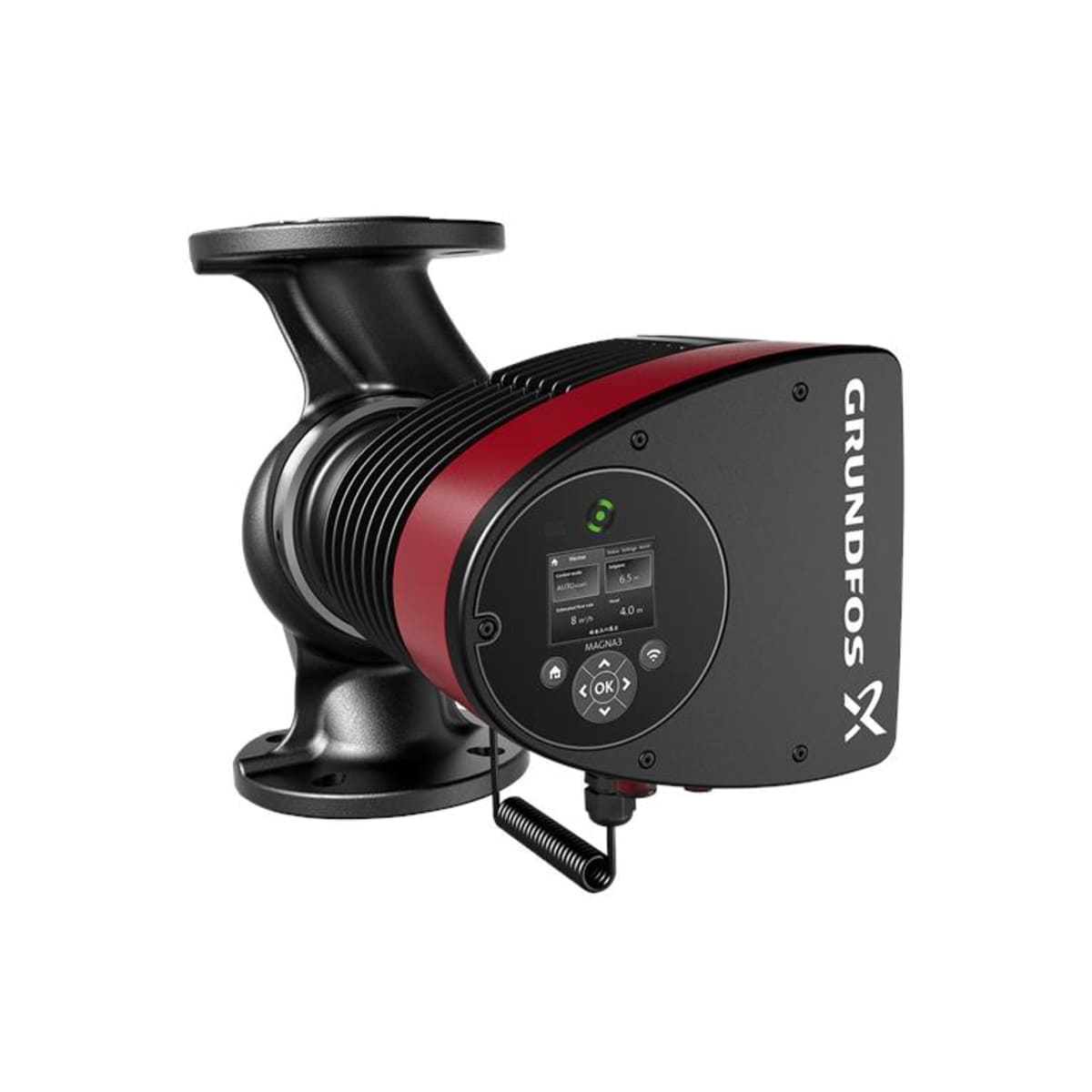

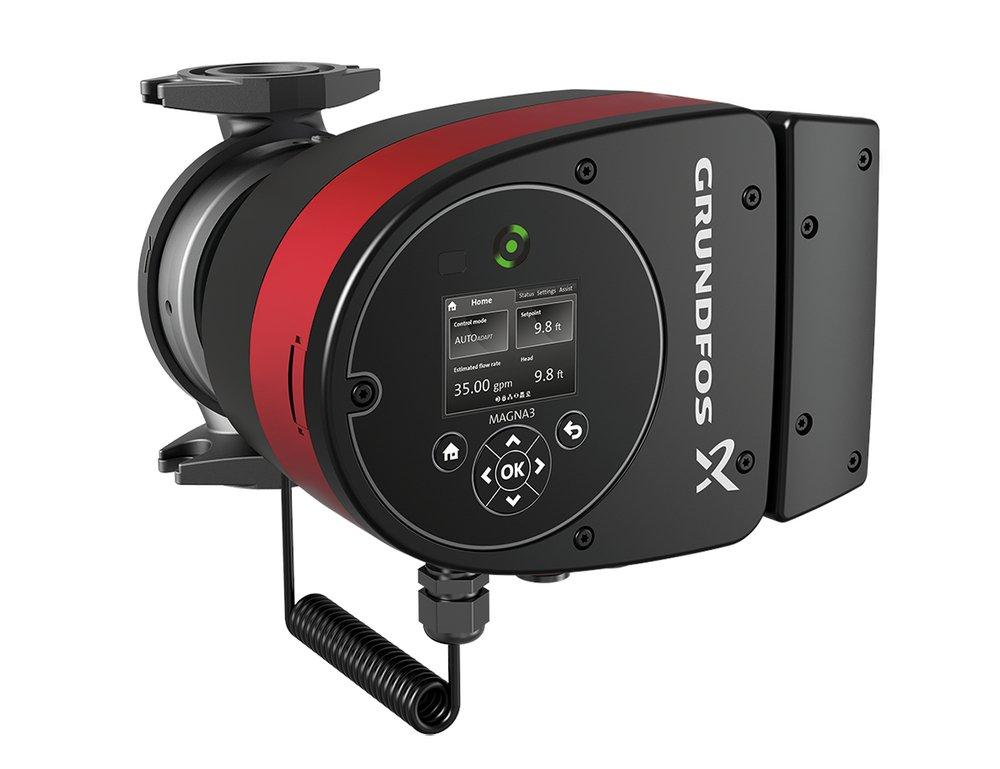

Grundfos MAGNA3 32-100 F Cast Iron Circulator Pump 98126824

Product Description

The Grundfos MAGNA3 1/6 HP Cast Iron Circulator Pump, model 98126824, offers advanced pumping solutions for heating, cooling, and hydronic systems. Integrating the latest technology, it enhances building project efficiency through its features like AUTOADAPT and wireless twin pump redundancy.

• Intuitive operation with color display and application wizard.
• Efficient fluid transportation with proportional-pressure and FLOWLIMIT technology.
• Fully integrated frequency converter and motor protection.

Product Highlights

Supported by a 4-pole synchronous PM motor, the Grundfos MAGNA3 delivers superior performance through variable speed control designed to optimize energy consumption and pump output. The complete system integration replaces traditional components to enhance setup simplicity and long-term reliability.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126824
• Power: 1/6 HP
• Voltage: 115 to 230 VAC

Technical Specifications

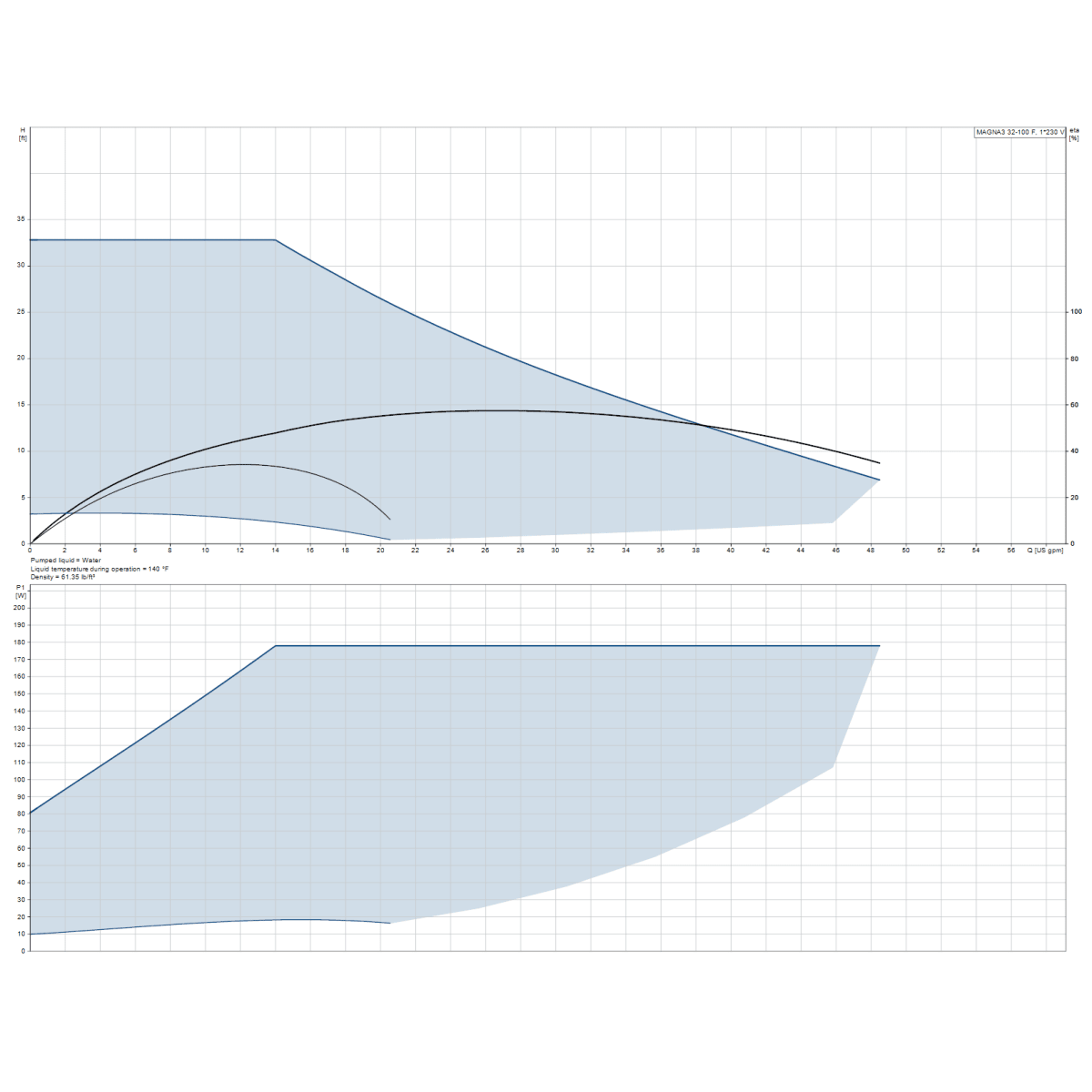

• Flow Rate: 50 gpm
• Maximum Head: 32.81 ft
• Max Pressure: 174 psi
• Temperature: Operable up to 104 deg F
• Enclosure Type: X4D

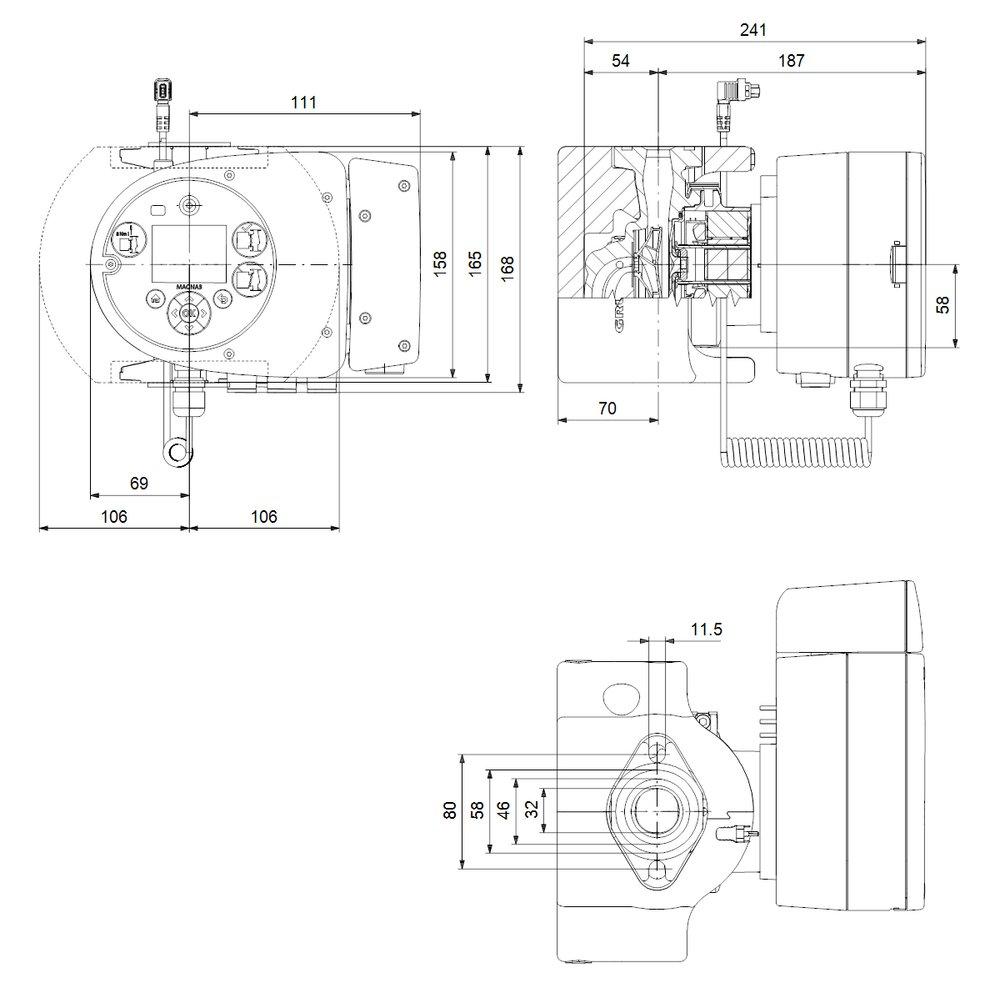

• Dimensions: 9.49 in W
