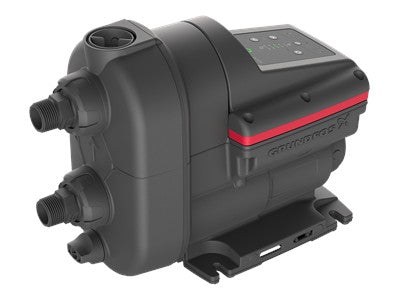

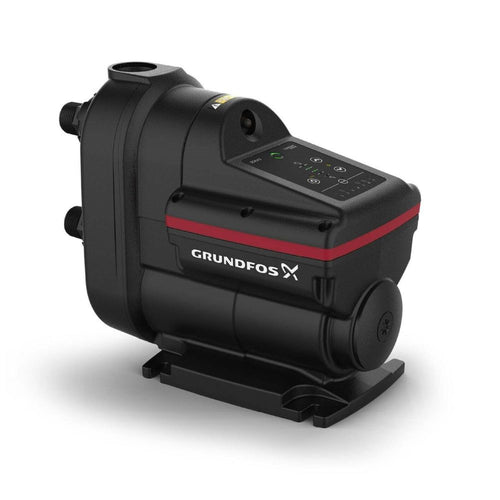

Grundfos GF93013251 GRUNDFOS SCALA2 3-45 Pressure Boosting Pump

Product Description

The GRUNDFOS SCALA2 Pressure Boosting Pump, model GF93013251, is designed for enhancing water pressure in residential settings. This unit combines multiple components into a compact form, including a pump, motor, tank, sensor, drive, and non-return valve.

• Self-priming for immediate use.
• Integrated speed control for stable pressure.
• Automatic adjustment based on water flow needs.

Product Highlights

The SCALA2 provides reliable pressure management for household water systems. It is equipped with built-in features that react to changes in water demand, ensuring consistent performance.

Product Information

Standard Information

• Brand: Grundfos
• MPN: GF93013251

Technical Specifications

• Rated Flow: 13.2 US gpm
• Maximum Flow: 20.3 US gpm
• Rated Head: 88.59 ft
• Maximum Head: 147.6 ft
• Primary Shaft Seal: Carbon/Ceramic
• Approvals: cULus
• Max Pump Speed: 5200 rpm
• Weight: 21.4 lb
• Dimensions: 17.5 x 10 x 14.5 in.
• Liquid Temperature Range: 32 to 113 °F
• Rated Power: 0.603 HP
• Voltage: 1 x 115 V
• Power Input P1: 550 W
• Enclosure Type: 3
