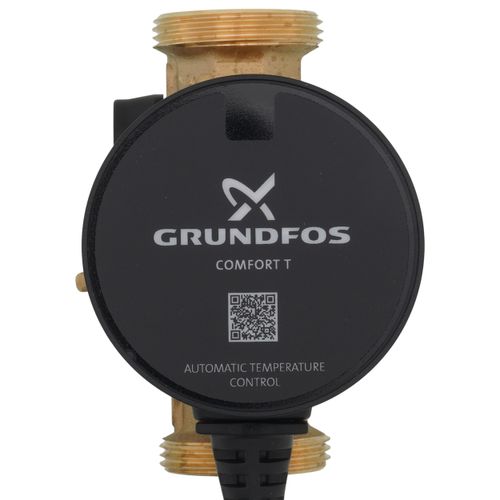

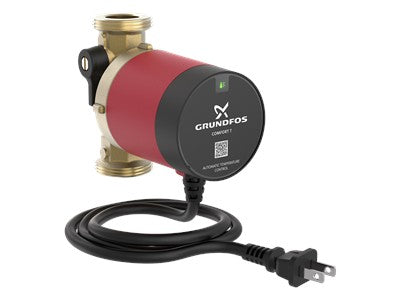

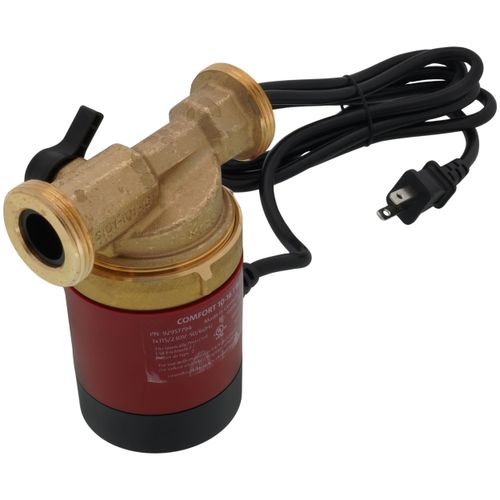

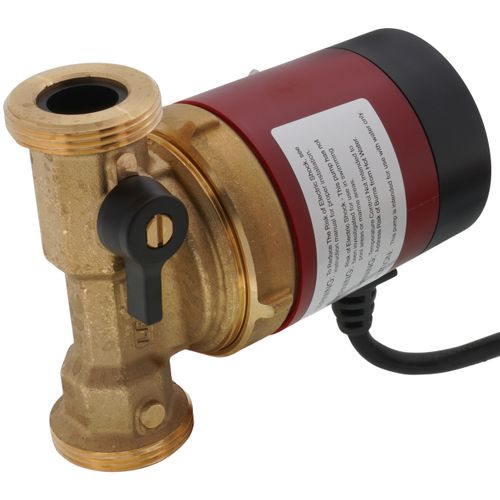

Grundfos GF92957794 Hot Water Recirculation Pump

Product Description

The Grundfos Comfort 10-16 T BU/LC is a hot water recirculation pump designed for residential use. This model, GF92957794, is compact and energy-efficient, allowing for fast delivery of hot water to faucets. It features easy installation and silent operation, making it suitable for various home configurations.

• Ideal for hot water recirculation in homes.
• Single-speed operation for reliability.
• Includes a line cord with a plug for convenient setup.

Product Highlights

The pump operates based on temperature, ensuring quick access to hot water while saving energy.

Product Information

Standard Information

• Brand: Grundfos
• MPN: GF92957794

Technical Specifications

• Rated Flow: 1.45 US gpm
• Rated Head: 1.841 ft
• Maximum Head: 5.25 ft
• Maximum Operating Pressure: 145.04 psi
• Liquid Temperature Range: 34.9 to 179.6 °F
• Selected Liquid Temperature: 140 °F
• Main Frequency: 60 Hz
• Input Voltage: 1 x 115-230 V
• Current in Speed 3: 0.1 A
• Enclosure Class: IP44
• Insulation Class: F
• Thermal Protection: ELEC
• Cable Type: Connecting cord with plug
• Type of Cable Plug: NEMA 1-15P
• Operation Mode: Temperature
• Net Weight: 3.07 lb
• Gross Weight: 3.4 lb
• Pump Housing Material: Brass
• Impeller Material: Composite
• Pipe Connection: 1 1/4inch NPSM
• Port-to-Port Length: 4 3/8 in
• Pumped Liquid: Water
• Density: 61.35 lb/ft³
• Maximum Power Input: 6 W
• Approvals: UL, CSA
• Connection Size: 1-1/4inch
• Connection Type: NPSM
• Phase: 1
