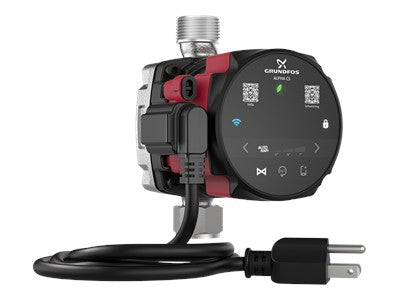

Grundfos GF92603114 Alpha CS 15-55 SU7P/TLC

Product Description

The Grundfos Alpha CS is ideal for domestic hot-water recirculation systems that do not have a dedicated return line. This model features a bypass valve equipped with a thermal actuator that helps manage water flow effectively. Users can set schedules using the integrated digital timer. The Alpha CS can be applied in various settings, including HVAC heating, plumbing hot water recirculation, district heating, and residential hot water recirculation.

• Designed for domestic hot-water recirculation systems
• Includes a bypass valve with thermal actuator
• Scheduling available via a built-in digital timer

Product Highlights

This pump efficiently supports applications such as HVAC and plumbing systems.

Product Information

Standard Information

• Model: B
• Approvals: FCC, cULus, cULDWus, cUPC

Technical Specifications

• Rated Flow: 8.37 US gpm
• Maximum Flow: 13.6 US gpm
• Rated Head: 11.16 ft
• Pump Head Orientation: 9H
• TF Class: 95
• Pump Housing: Stainless steel EN 1.4308 ASTM A351-CF8
• Impeller: Composite PESU 30% gf + PESU-GF20%
• Maximum Operating Pressure: 174.92 psi
• Pipe Connection Standard: ANSI B1.20.1
• Size of Suction Port: 3/4 inch
• Size of Outlet Port: 3/4 inch
• Liquid Temperature Range: 35.6 .. 203 °F
• Rated Voltage: 1 x 115 V
• Minimum Current Consumption: 0.06 A
• Maximum Current Consumption: 0.71 A
• Net Weight: 5.05 lb
• Gross Weight: 5.25 lb
