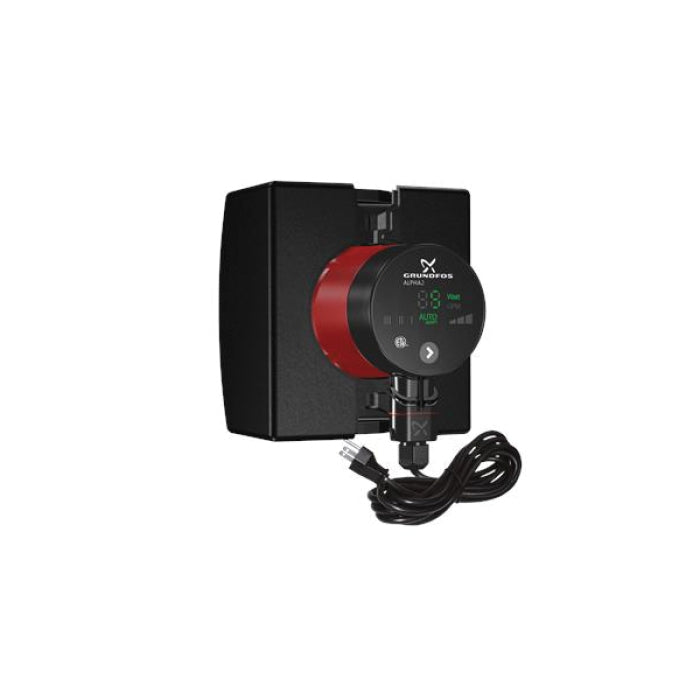

Grundfos 99163934 ALPHA2 15-55FR/LC Cast Iron 1/16 HP 115V 3-Speed Booster Pump

Product Description

The Grundfos ALPHA2 model 99163934 is a robust cast iron booster pump, ideal for a variety of demanding applications. This 3-speed pump features an innovative AUTOADAPT function for optimal efficiency and a rotated flange design for easy installation.

• Optimized energy consumption with ECM motor technology, reducing energy use by up to 50%.
• Flexible installation options with rotated flange and versatile connection settings.
• Robust construction ensures durability and long-lasting performance in challenging environments.

Product Highlights

Equipped with AUTOADAPT technology, the Grundfos ALPHA2 dynamically adjusts its settings to meet system demands, enhancing overall efficiency and reducing operational costs. Its sturdy cast iron construction and advanced radial bearing design contribute to its reliability and longevity.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 99163934
• Series: ALPHA2
• Type: In-Line Booster Pump

Technical Specifications

• Material: Cast Iron
• Power Rating: 0.0067 to 0.06 hp
• Voltage Rating: 115 VAC
• Amperage Rating: 0.1 to 0.65 A
• Frequency: 60 Hz
• Phase: Single (1 ph)
• Maximum Pressure: 145 psi
• Temperature Rating: 32 to 104 degrees F
