Product Description

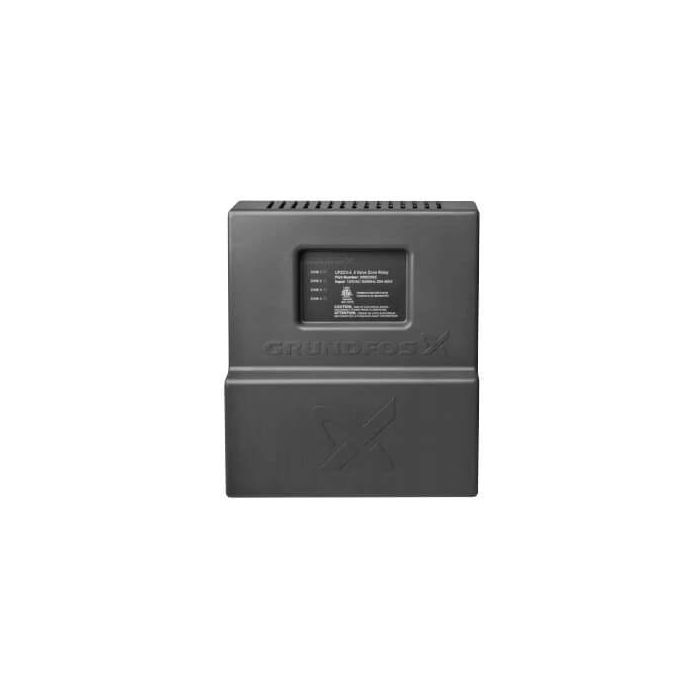

The Grundfos Valve Control 6 Zone, identified by MPN 98996439, is suited for managing hydronic heating systems effectively. This control unit is designed for one or multiple zones, supporting both zone pumps and low-voltage, zone valves. It features a front panel with LED indicators for clear operational status.
- Expandable for multiple zones
- Easy wiring with side-mounted terminals
- Compatible with various low-voltage controls
Product Highlights
This control valve provides flexibility and reliability in heating applications. It is ideal for installations requiring zone control, ensuring efficient system performance.
Product Information
Standard Information
-
Brand: Grundfos
-
Availability: 2 units ready for shipment
Technical Specifications
-
Input power 60 Hz: 120 VAC
-
Transformer voltage: 24 VAC, 40 VA, Class 2
-
Thermostat output [A]: 0.375, 0.5, 0.75
-
Maximum single phase motor rating per zone [A]: 5
-
Maximum combined load rating @ 120 VAC [A]: 20
-
Temperature range (storage) [°F (°C)]: 50-100 (10-38)
-
Temperature range (maximum operation) [°F (°C)]: 0-100 (-18-38)
-
Maximum operating humidity range % RH: 90%
-
Number of knockouts: 12
-
Size of knockouts [in. (mm)]: 0.0875 (22)
-
Approvals: CSA 22.2 No. 24 / UL Standard 873
-
Cover panel: ABS-Fire rated
-
Base material: Galvanized steel
-
Front display lights: LED
