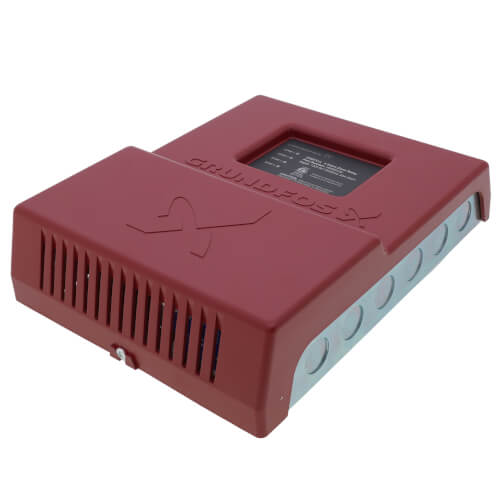

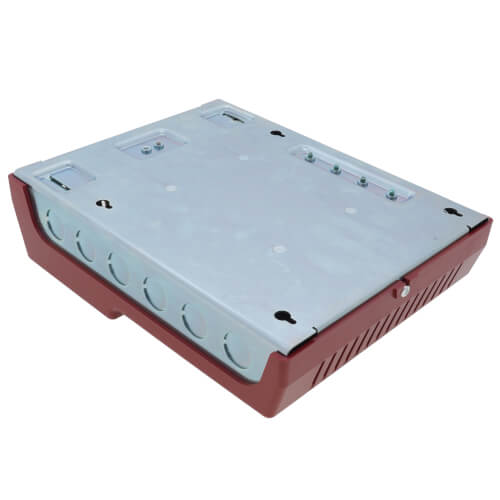

Grundfos 98996438 UPZCV-4 4 Zone Valve Control

Product Description

The Grundfos UPZCV-4 4 Zone Valve Control is designed for managing single and multiple zone hydronic heating systems. This control unit supports both zone pumps and low-voltage zone valves, ensuring versatility for various installations. The system is expandable, making it suitable for jobs of any size, control for boiler pumps, domestic hot water pumps, and system pumps can be effectively managed.

• Easy installation
• Simple operational design
• Expandable for additional zones

Product Highlights

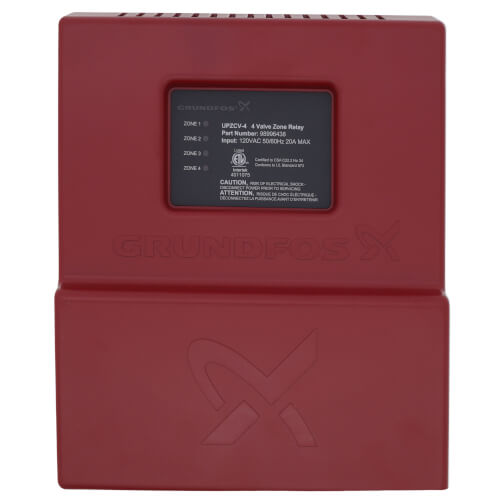

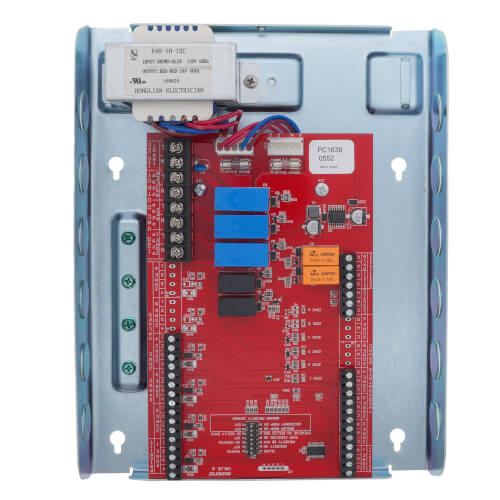

This product features side-mounted terminals for ease of wiring and front-facing LED indicators that communicate operation status clearly.

Product Information

Standard Information

• Input Power: 120 VAC
• Transformer Voltage: 24 VAC, 40 VA, Class 2

Technical Specifications

• Number of Zones: 4
• Thermostat Output: 0.375, 0.5, 0.75 A
• Maximum Single Phase Motor Rating: 5 A
• Maximum Combined Load Rating: 20 A at 120 VAC
• Operating Temperature Range: 0-100 °F
• Storage Temperature Range: 50-100 °F
• Maximum Humidity: 90%
• Relay Type: Sealed
