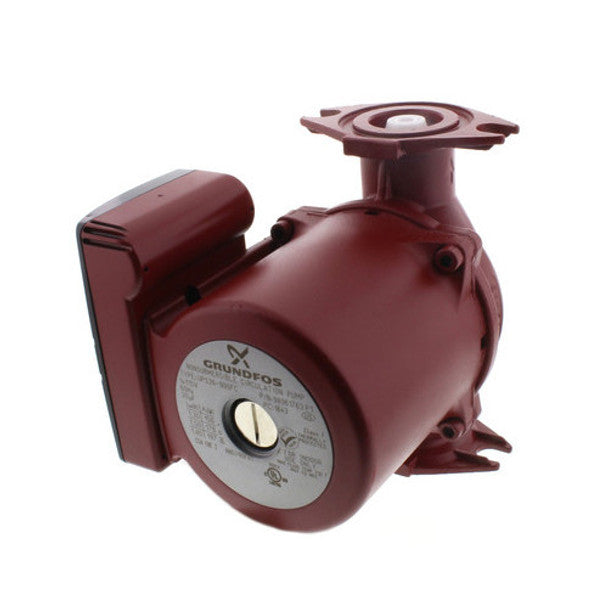

Grundfos 98961762 UP26-99 SF Circulator Pump 115 VAC

Product Description

The Grundfos 98961762 UP26-99 SF is a canned rotor circulator pump designed for efficient heating and circulation. This pump operates on one-phase power and is suitable for both heating systems and hot water circulation. The compact design enhances its functionality in various setups.

• Canned rotor design for better performance.
• Suitable for hot water circulation and heating applications.
• Built-in motor provides quiet operation and longer lifespan.

Product Highlights

This circulator pump ensures reliable performance for heating systems and domestic water circulation.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98961762

Technical Specifications

• Amperage Rating: 2.15 A
• Bearing Type: Radial/Thrust
• Dimensions: 6-3/8 inches W x 6-1/2 inches H
• Frequency Rating: 60 Hz
• Impeller Type: Composite PES
• Maximum Head: 32.15 ft
• Maximum Pressure: 145 psi
• Phase: 1 ph
• Power Rating: 245 W
• Series: UP Series
• Temperature Rating: 140 deg F
• Type: Canned Rotor
• Voltage Rating: 115 VAC
