Product Description

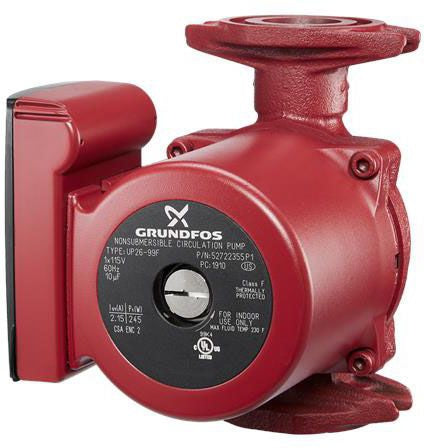

The Grundfos 98961756 is a robust circulator pump designed for the efficient circulation of heating and cooling liquids in residential and commercial settings. This stainless steel pump, part of the UP Series, is engineered for low-energy consumption and optimal performance in various HVAC applications.
- Efficient 1-speed operation with built-in motor, eliminating the need for shaft seal and reducing maintenance requirements.
- Operates on 115 VAC, 60 Hz, with a power rating of 205 watts, providing a max head of 29.86 feet and a flow rate of 28.2 GPM.
- Designed for easy installation with flanged connection points, ensuring a secure and leak-free setup.
Product Highlights
Grundfos' 98961756 model features a canned rotor design, which integrates the motor and pump to form a compact and efficient unit. Its construction includes advanced materials like composite PES for the impeller and ceramic for the shaft, offering enhanced durability and corrosion resistance.
Technical Specifications
-
Motor Type: Built-in
-
Power Rating: 205 watts
-
Input Supply Rating: 115 Volt AC 60 Hertz 1-Phase 1.7 Amp
-
Temperature Rating: 176 degrees F
-
Pressure Rating: 145.04 PSI
-
Casing Material: Stainless Steel
-
Shaft Material: Ceramic
-
Impeller Material: Composite, PES
