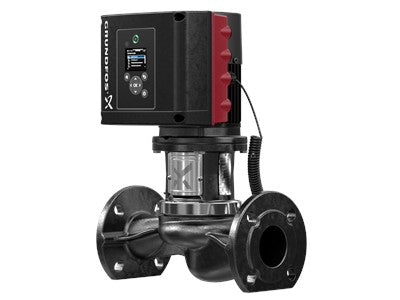

GRUNDFOS 98819502 TPE3 40-180 S-A-G Single-Stage In-Line Pump

Product Description

The GRUNDFOS 98819502 TPE3 40-180 S-A-G is a single-stage, close-coupled, volute pump. It has in-line suction and discharge ports of equal diameter. This pump features a top-pull-out design. This allows easy removal of the power head for maintenance without disturbing existing pipework.

It has a fan-cooled, permanent-magnet synchronous motor categorized as IE5. The pump includes a built-in frequency converter and PI controller for variable speed control. A temperature and differential-pressure sensor is built into this system.

• Single-stage, close-coupled pump with in-line ports
• Fan-cooled, permanent-magnet synchronous motor classified as IE5
• Comes with built-in frequency converter and temperature/differential-pressure sensor

Product Highlights

Ideal for high-efficiency applications in various plumbing and HVAC tasks.

Product Information

Standard Information

• Brand: GRUNDFOS
• MPN: 98819502

Technical Specifications

• Actual impeller diameter: 2.91 inches
• Enclosure class (IEC 34-5): IP55
• Maximum head: 59.06 feet
• Maximum operating pressure: 174.05 psi
• Rated flow: 79.3 US gpm
• Power: 1 HP
• Rated voltage: 1 x 200-240 V
• Pumped liquid: Water
