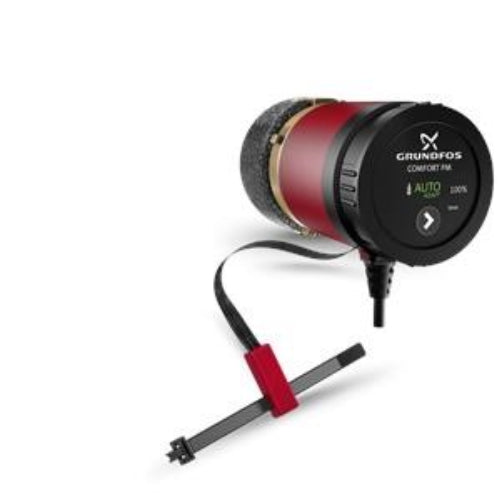

Grundfos 98420223 UP Comfort Canned Rotor Circulator Pump 115 to 230 VAC

Product Description

The Grundfos 98420223 UP Comfort Canned Rotor Circulator Pump is engineered for heating systems. This pump is also ideal for circulating hot domestic water and cooling and air conditioning systems.

• Designed for heating systems
• Suitable for hot water circulation
• Effective in cooling and air conditioning systems

Product Highlights

Grundfos circulator pump with a UP Comfort series canned rotor, featuring a 1/2 inch inlet and outlet, 6 W power rating, and 115 to 230 VAC voltage rating. It operates at 60 Hz with a maximum pressure of 145 psi and maximum head of 5.25 feet. The pump includes a ceramic radial and carbon thrust bearing.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98420223
• Type: Canned Rotor
• Series: UP Comfort
• Manufacturer: Grundfos
• Inlet Size: 1/2 in C
• Outlet Size: 1/2 in C

Technical Specifications

• Amperage Rating: 0.1 to 0.07 A
• Bearing Type: Ceramic Radial/Carbon Thrust
• Dimensions: 3-1/3 in Dia
• Enclosure Type: IP44
• Frequency Rating: 60 Hz
• Impeller Type: Stainless Steel/EPDM/PPO/PTFE/Graphite
• Maximum Head: 5.25 ft
• Maximum Pressure: 145 psi
• Phase: 1 ph
• Power Rating: 6 W
• Temperature Rating: 140 deg F
• Voltage Rating: 115 to 230 VAC
