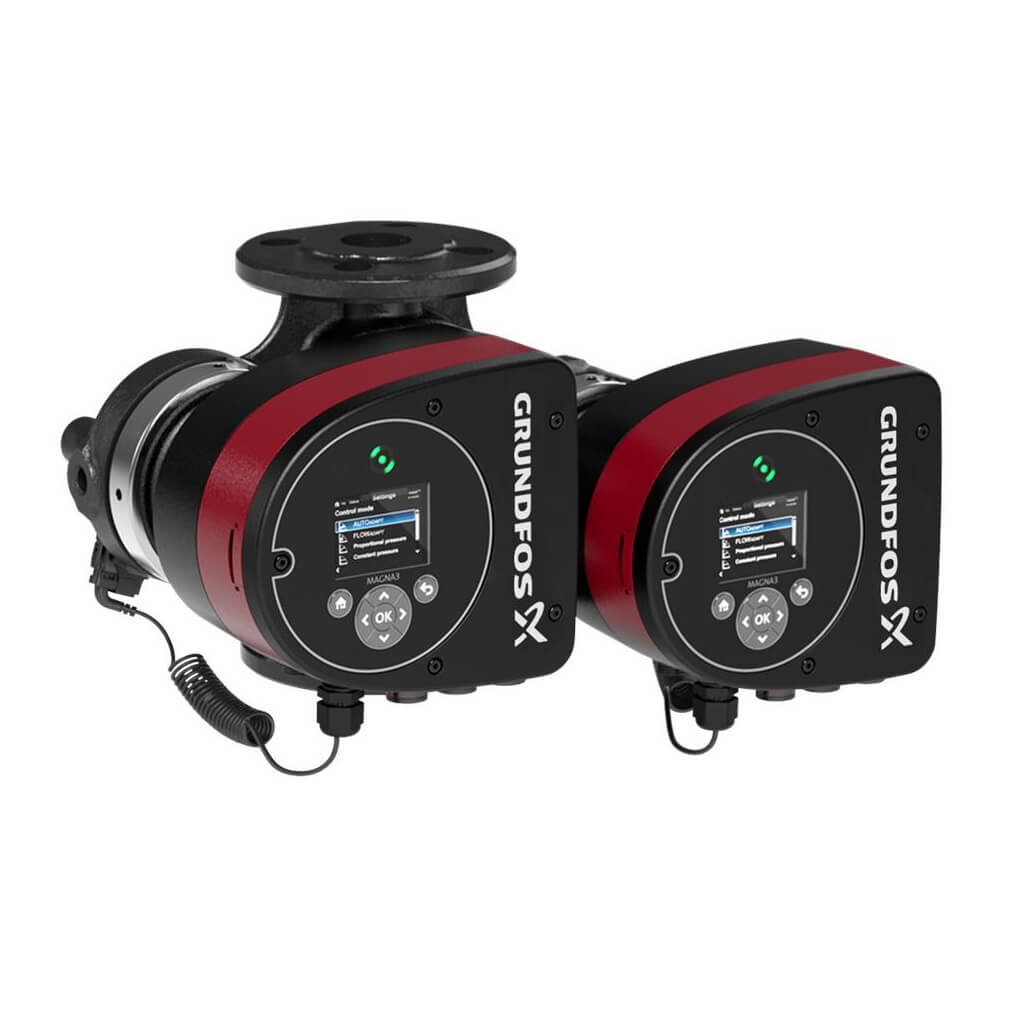

Grundfos 98126865 MAGNA3 100-120, Max Head 49.22, Max Flow 250 gpm - Cast Iron Body - 230V

Product Description

The Grundfos MAGNA3 100-120 circulator pump is designed for high efficiency and performance. Its advanced features make it suitable for both heating and cooling applications. The pump includes wireless communication and can connect directly with the Grundfos GO app via Bluetooth, allowing for easy monitoring and adjustments.

• Wireless twin pump redundancy for enhanced performance
• Low maintenance due to its canned-rotor design
• Integrated frequency converter for optimal speed control

Product Highlights

This pump offers a maximum head of forty-nine point twenty-two feet and a flow rate of up to two hundred fifty gallons per minute. Its cast iron body ensures durability in demanding environments.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126865

Technical Specifications

• Flow Rate Range: Over 100 GPM
• Motor Type: 4-pole synchronous permanent-magnet motor
• Voltage: 230V
• Material: Cast Iron
• Horse Power: 2 HP
• Max Pressure: 175 PSI
• Shipping Weight: 138.22 lbs
• Shipping Dimensions: 24.96 inches x 24.21 inches x 20.87 inches
