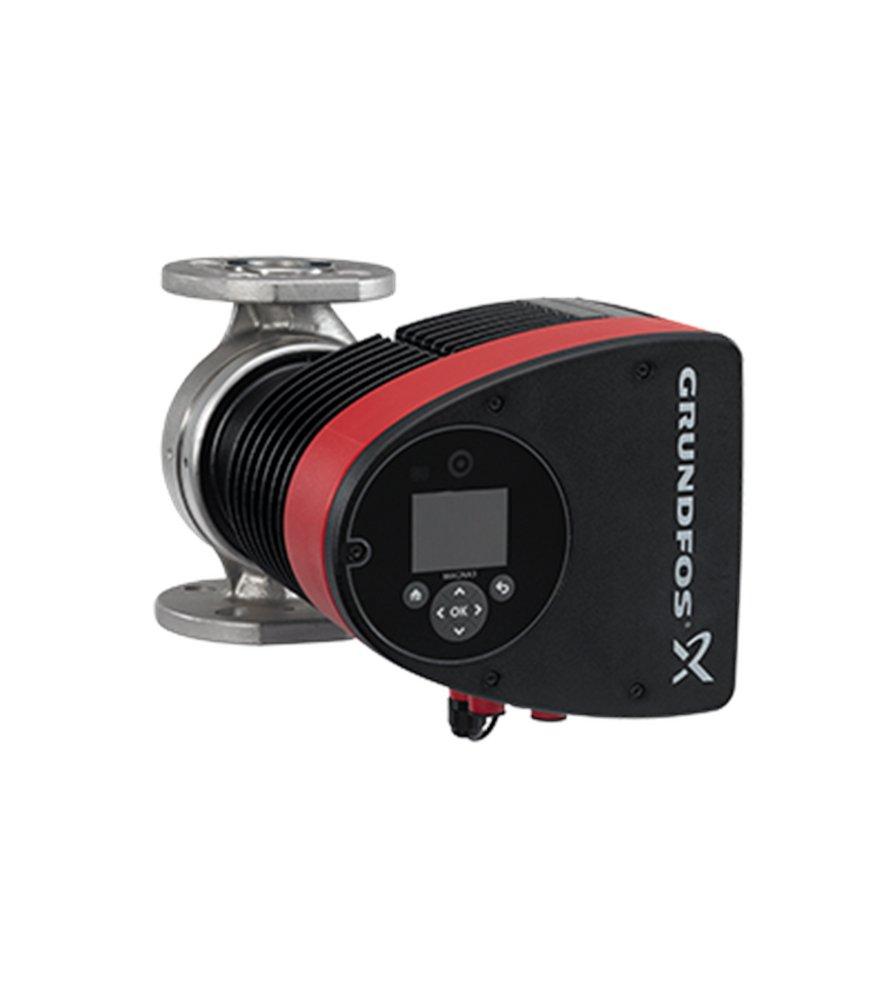

Grundfos 98126854 MAGNA3 1-1/2 HP 208/230V Stainless Steel Circulator Pump

Product Description

The Grundfos MAGNA3 circulator pump with MPN 98126854 is designed for optimal system control and efficiency. This stainless steel pump operates at a power of one and a half horsepower and is suitable for heating applications, delivering reliable performance for hydronic heating systems.

• Wireless twin pump redundancy for reduced downtime.
• Proportional pressure control for efficiency.
• Intuitive color display for easy operation.

Product Highlights

This circulator pump features AUTOADAPT mode, which automatically adjusts settings for peak performance. It is equipped with advanced communication options, including analog and digital inputs. The built-in Application Wizard simplifies the commissioning process, making installation quick and efficient.

Product Information

Standard Information

• Brand: Grundfos
• Part No: G98126854

Technical Specifications

• Type: Variable Speed Circulator
• Material: Stainless Steel
• Max Flow Rate: 140 GPM
• Max Head: 39.37 feet
• Power Supply: 208/230V
• Flow Rate Range: Over 100 GPM
