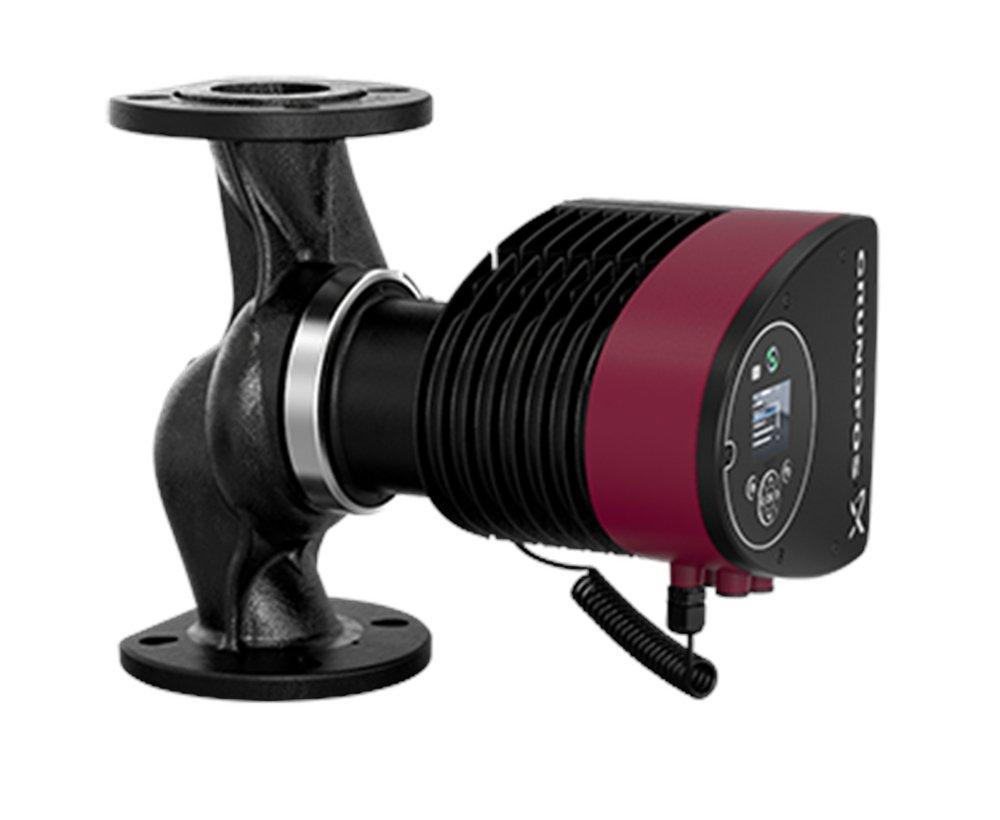

Grundfos 98126852 MAGNA3 1-1/2 HP 208/230V Cast Iron Circulator Pump

Product Description

The Grundfos MAGNA3 with MPN 98126852 is a circulator pump designed to meet both heating and cooling demands efficiently. This compact circulator pump operates at 1-1/2 horsepower and is suitable for various applications in residential and commercial settings.

• Maximum flow rate of 250 gallons per minute
• Integrated auto-adapt feature for optimal system performance
• Energy-efficient permanent magnet motor for reduced operating costs

Product Highlights

The MAGNA3 pump features robust construction with a cast iron body and innovative design for minimal maintenance. It is user-friendly and equipped with wireless communication capabilities for easy integration with smart systems.

Product Information

Standard Information

• Type: Variable Speed Circulator
• Brand: Grundfos

Technical Specifications

• Power Rating: 29 to 1301 W
• Voltage Rating: 208 to 230 VAC
• Flow Rate: 250 gpm
• Maximum Head: 49.21 ft
• Maximum Pressure: 174 psi
• Amperage Rating: 0.3 to 5.68 A

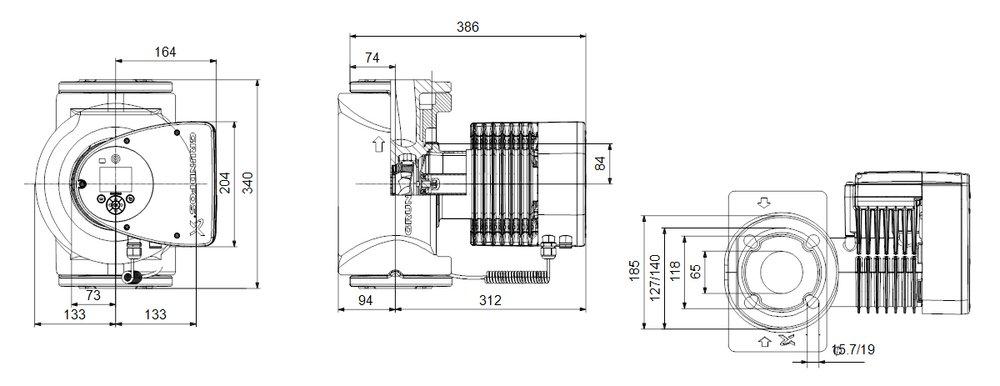

• Dimensions: 15.2 inches W x 13.99 inches H
• Temperature Rating: 32 to 104 degrees F Ambient
• Material: Cast Iron
• Frequency Rating: 60 Hz
