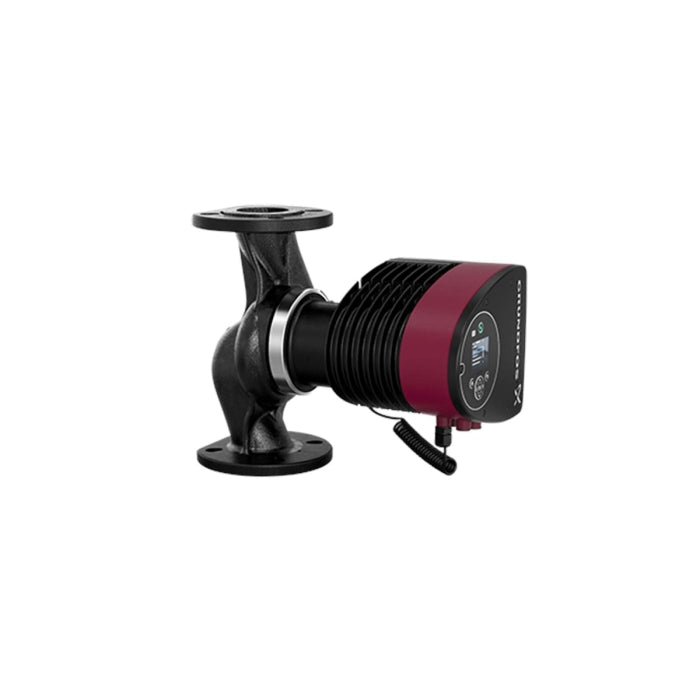

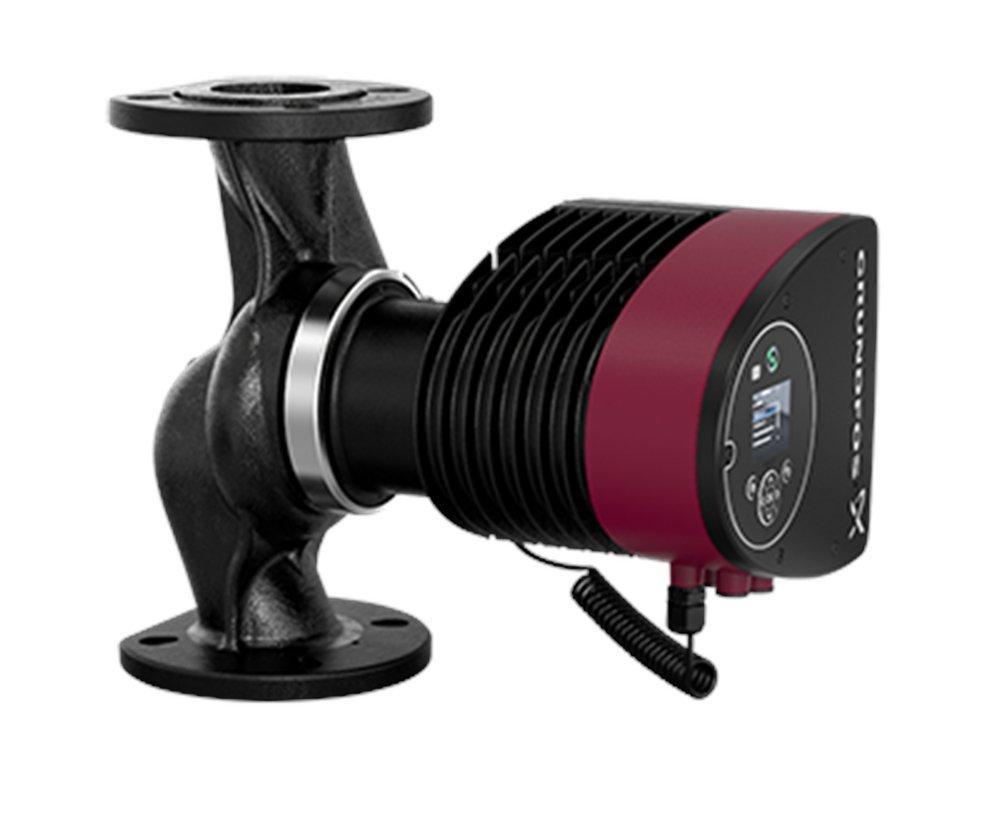

Grundfos 98126844 MAGNA3 5/6 HP 208/230V Cast Iron Circulator Pump

Product Description

The Grundfos MAGNA3 98126844 is a circulator pump designed for HVAC and domestic hot water systems. This pump offers efficient circulation of liquids in various applications, including heating systems, air conditioning, and ground source heat pumps.

• AutoAdapt function adjusts settings automatically
• Integrated frequency converter enhances energy efficiency
• Built-in diagnostics for maintenance tracking

Product Highlights

This circulator pump provides high efficiency and low energy consumption, supporting variable flow conditions.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126844

Technical Specifications

• Type: Variable Speed Circulator
• Material: Cast Iron
• Flow Rate Range: Over 100 GPM
• Phase: 1 ph
• Voltage Rating: 208 to 230 VAC
• Frequency Rating: 60 Hz
• Maximum Head: 49.22 ft
• Maximum Pressure: 175 psi

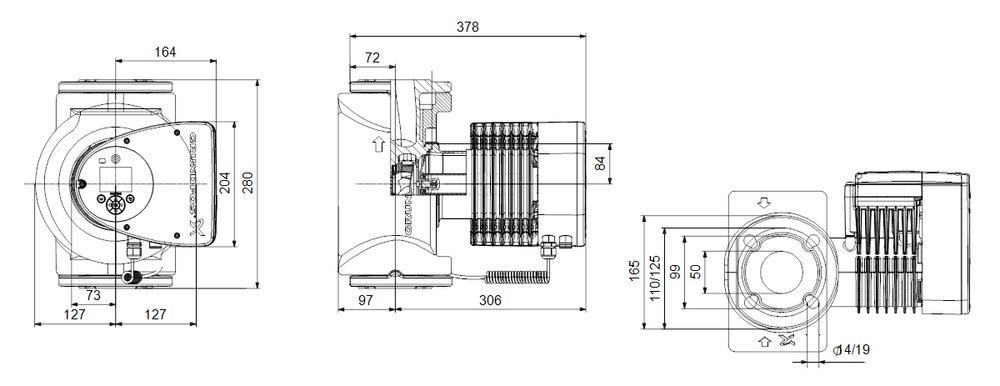

• Dimensions: 11.02 in L
• Viscosity Range: 10 to 50 cSt
• Enclosure Type: IPX4D
