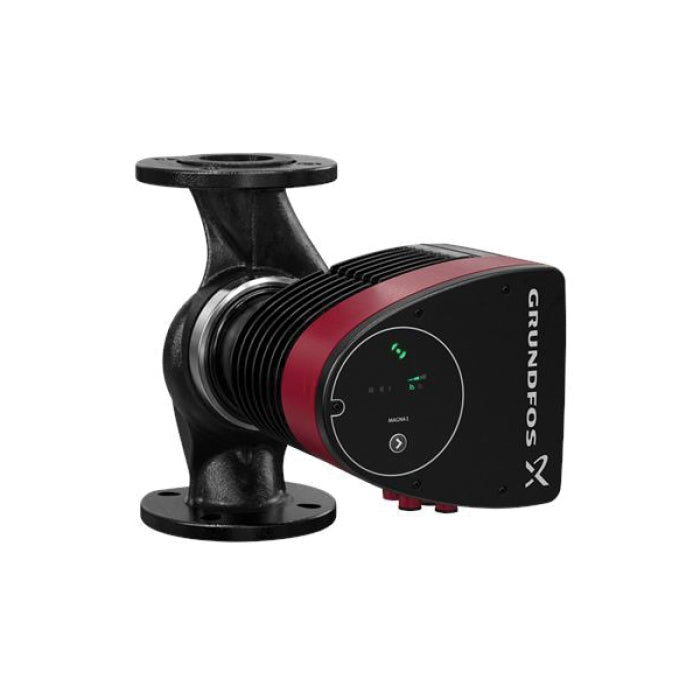

Grundfos 98126831 MAGNA1 40-120 1/3Hp 230V 1Ph Cast Iron Circulator Pump

Product Description

The Grundfos MAGNA1 40-120 1/3Hp 230V 1Ph is a state-of-the-art circulator pump designed for optimal performance in hydronic heating systems. Boasting a canned-rotor design, this unit smoothly integrates the pump and motor, eliminating the need for a shaft seal and minimizing maintenance.

• Energy-efficient with a power range of 25-450 watts
• Compact 8.5 inches port-to-port length for easy installation
• Robust 1.5 inches nominal pipe connection with GF 15/40 2 flange type

Product Highlights

This Grundfos circulator is designed for both commercial and residential heating systems, featuring an electronically controlled motor that optimizes energy usage and enhances system performance. Thanks to its thermal separation technology, it operates effectively within a wide temperature spectrum, supporting a maximum system pressure of 175 psi.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126831
• Type: Canned Rotor Circulator Pump

Technical Specifications

• Dimensions: 8-1/2 in Height
• Weight: 38.9997278 lbs
• Material: Cast Iron
• Power Rating: 17 to 456 W
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 0.18 to 2.05 A
• Frequency: 60 Hz
• Max Pressure: 175 psi
