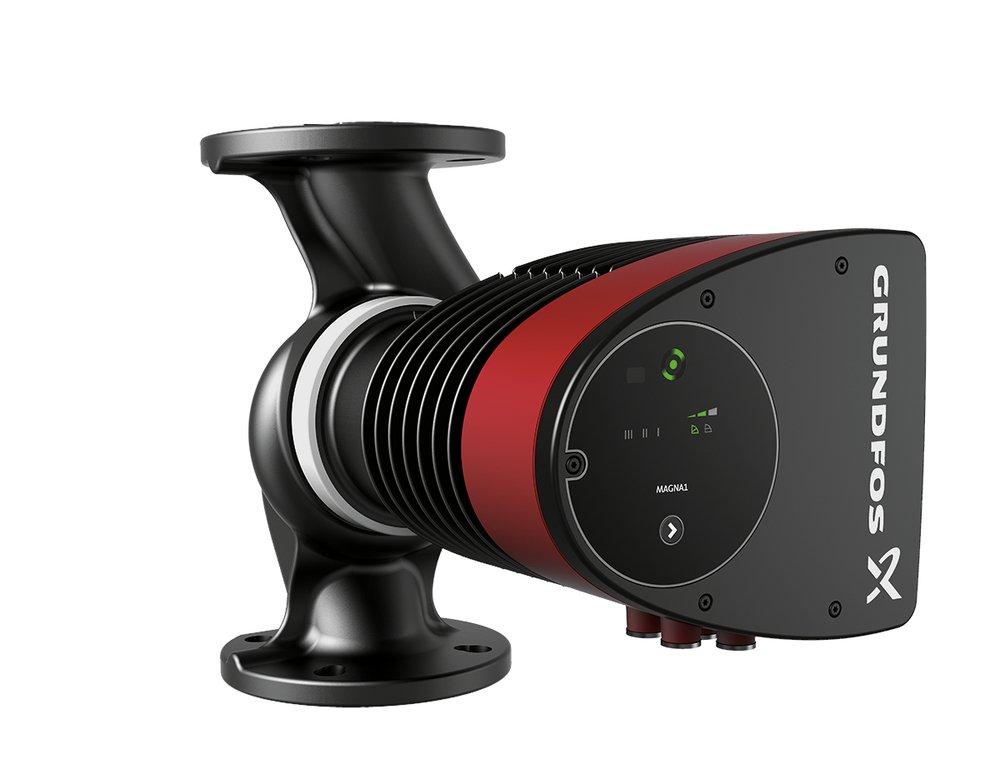

Product Description
The Grundfos 98126823 MAGNA1 circulator pump is designed for efficient liquid circulation in heating systems. This pump is ideal for applications like heating systems, air-conditioning, and domestic hot water systems. It helps optimize energy usage by adjusting the duty point according to the heat demand.
- Low energy consumption
- Quiet operation
- Simple installation
Product Highlights
This pump offers constant-curve control, constant-speed duty, and proportional-pressure control.
Product Information
Standard Information
-
Brand: Grundfos
-
MPN: 98126823
Technical Specifications
-
Amperage Rating: 0.28 to 1.61 A
-
Bearing Type: Thrust
-

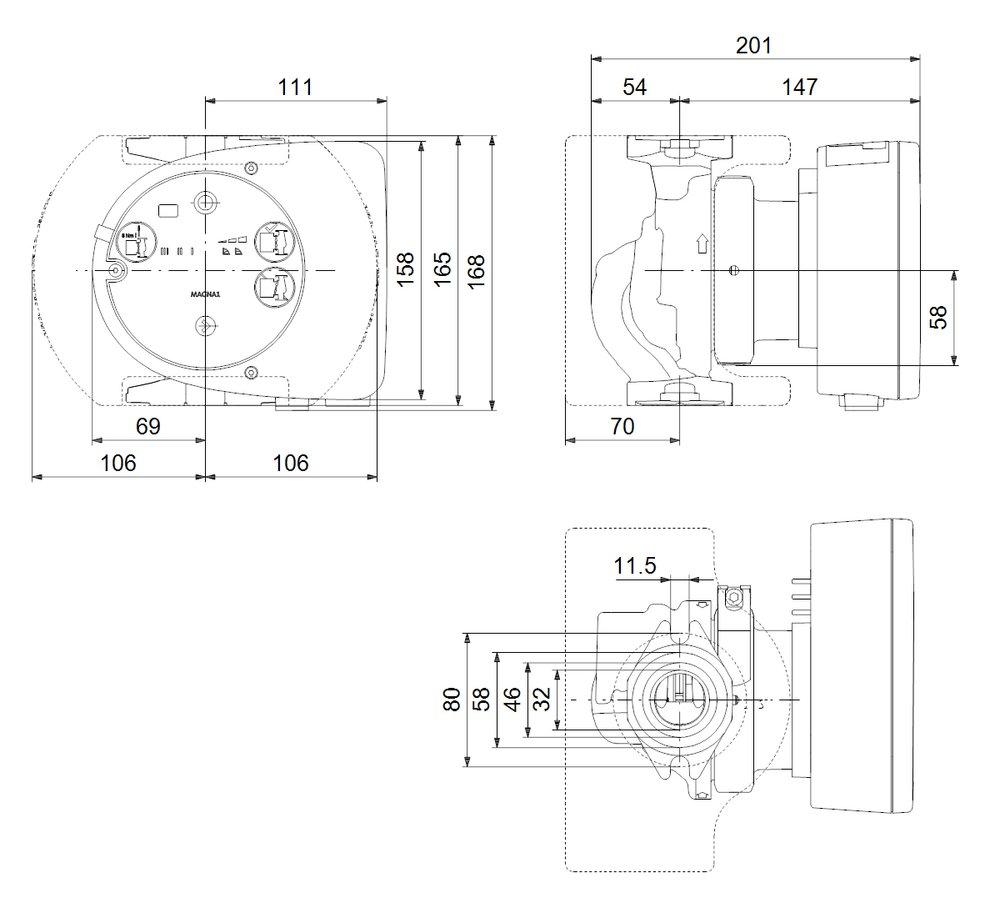

Dimensions: 7.91 inches W x 6.61 inches H
-
Enclosure Type: IPX4D
-
Frequency Rating: 60 Hz
-
Impeller Type: PES 30% GF
-
Maximum Head: 32.81 ft
-
Maximum Pressure: 175 psi
-
Phase: 1 ph
-
Power Rating: 8.62 to 178 W
-
Series: MAGNA1
-
Temperature Rating: 140 deg F
-
Type: Canned Rotor
-
Voltage Rating: 115 to 230 VAC
