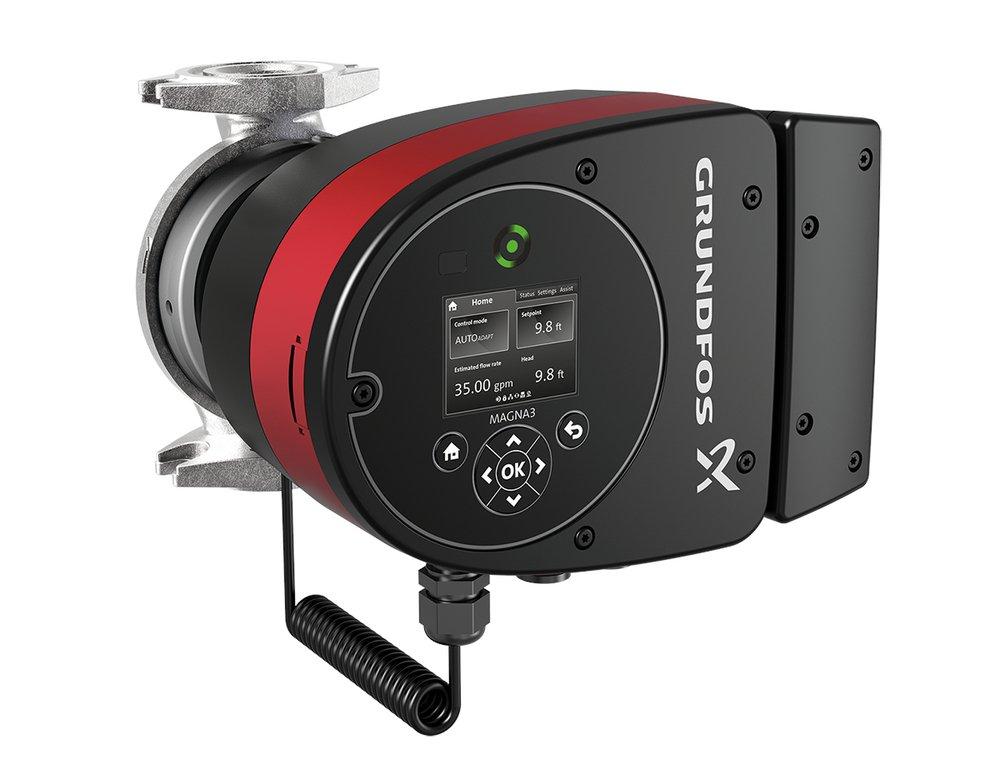

Grundfos 98126822 MAGNA3 1/6 HP 115/230V Stainless Steel Circulator Pump

Product Description

The Grundfos MAGNA3 1/6 HP 115/230V Stainless Steel Circulator Pump, MPN 98126822, is designed for efficient heating, cooling, and domestic hot water circulation. It is suitable for various building projects, providing high performance and low lifecycle costs.

• Variable speed operation for energy efficiency.
• Built-in communication capabilities for easy integration.
• Auto-adapt feature for optimal performance.

Product Highlights

The MAGNA3 circulator pump offers unique features such as FLOWLIMIT, which minimizes the need for throttling valves. It also includes a proportional pressure control function and a constant flow mode for versatile applications.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126822

Technical Specifications

• Type: Variable Speed Pump
• Horse Power: 1/8
• Voltage: 115/230V
• Max Head: 19.7 feet
• Connection Type: Flanged x Flanged
• Material: Stainless Steel
• Max Pressure: 175 PSI
• Flow Rate Range: 0 to 40 GPM
• Shipping Dimensions: 11.65 inches (D) x 10.71 inches (W) x 10.35 inches (H)
• Weight: 14.55 lbs
