Product Description

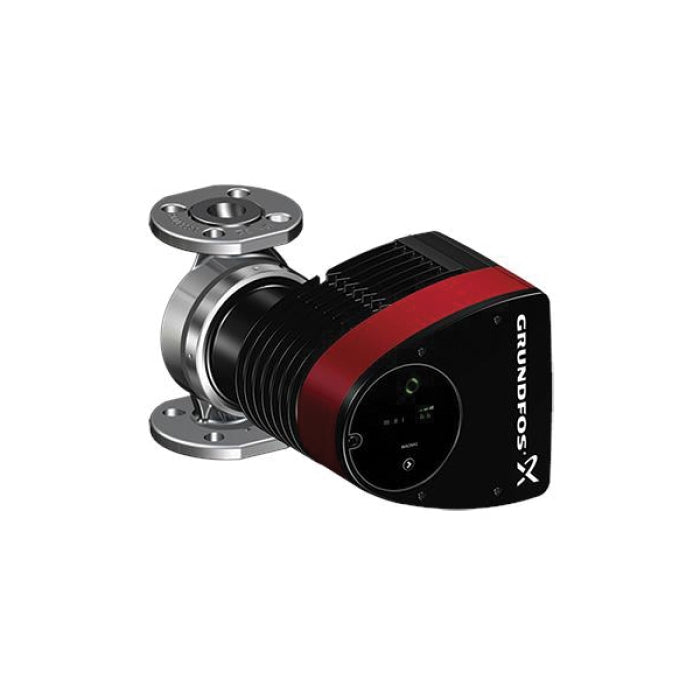

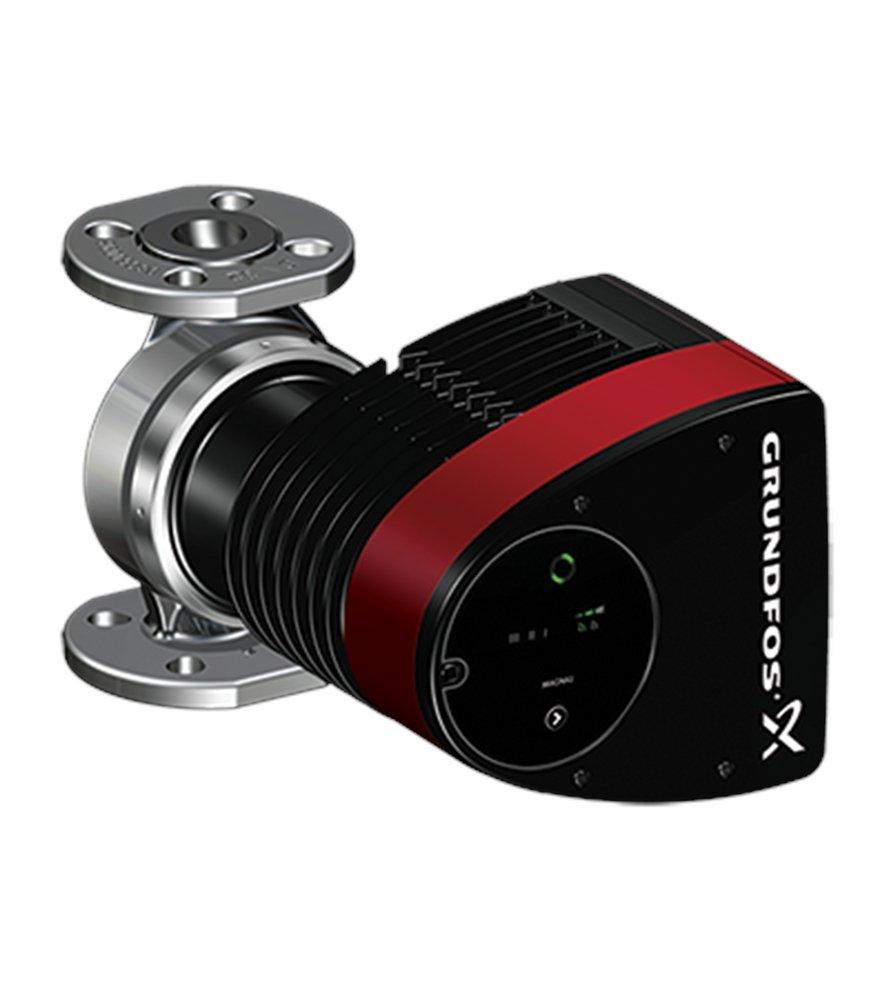

The Grundfos MAGNA1 circulator pump, model number 98126821, is designed for circulating liquids in heating systems. This model operates at a voltage range of 115 to 230 volts and features a stainless steel construction ideal for both heating and domestic hot-water applications.
- Energy-efficient operation.
- Simple installation and maintenance.
- Designed for a wide temperature range.
Product Highlights
The MAGNA1 pump helps optimize energy use by adjusting to actual heat demand, making it suitable for various applications.
Product Information
Standard Information
-
Brand: Grundfos
-
MPN: 98126821
Technical Specifications
-
Type: Canned Rotor
-
Phase: 1 ph
-
Maximum Head: 19.69 ft
-
Power Rating: 8.71 to 107 W
-
Voltage Rating: 115 to 230 VAC
-
Amperage Rating: 0.28 to 1.01 A
-
Maximum Pressure: 175 psi
-
Temperature Rating: 140 deg F
-
Enclosure Type: IPX4D
-

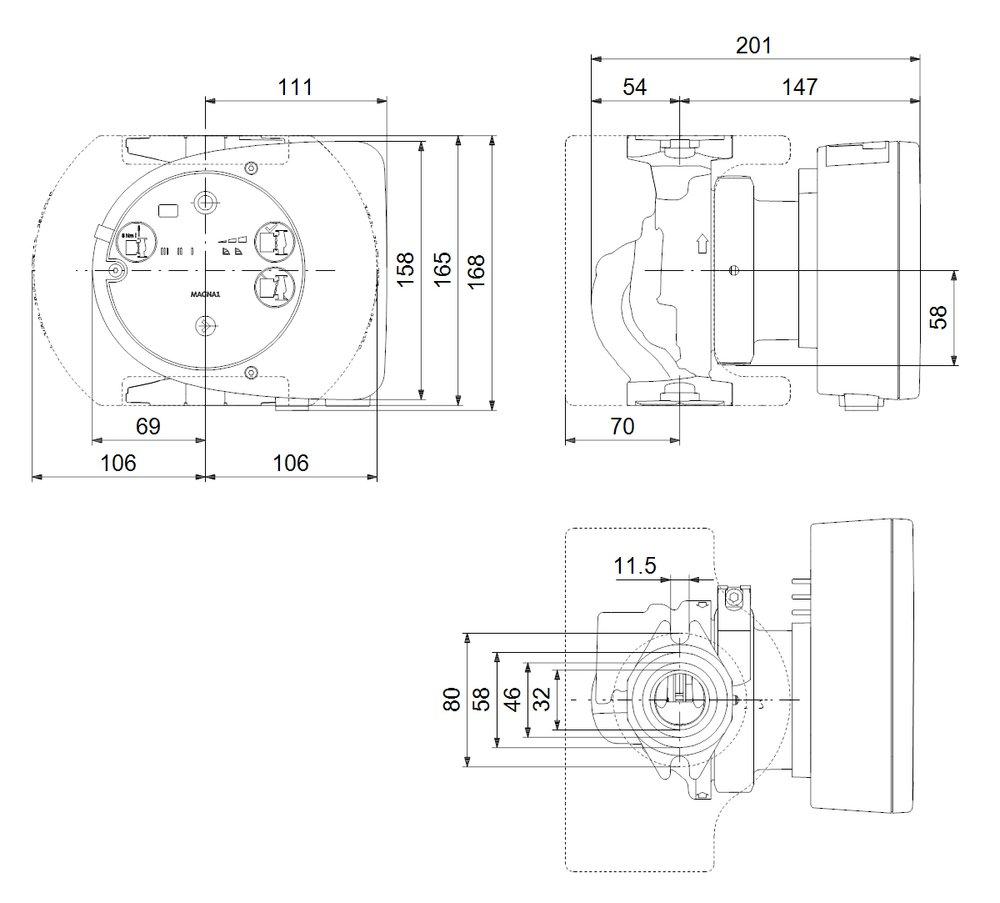

Dimensions: 7.91 in W x 6.61 in H
-
Impeller Type: PES 30% GF
-
Frequency Rating: 60 Hz
