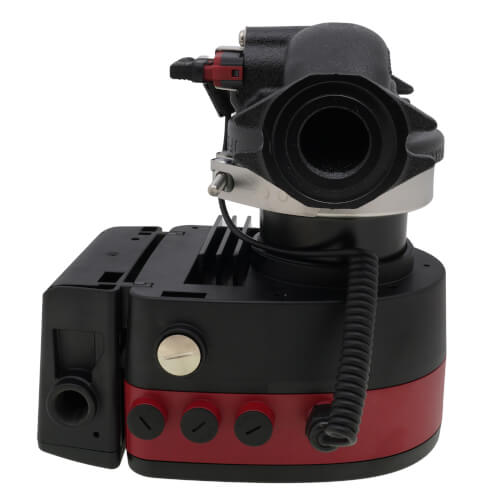

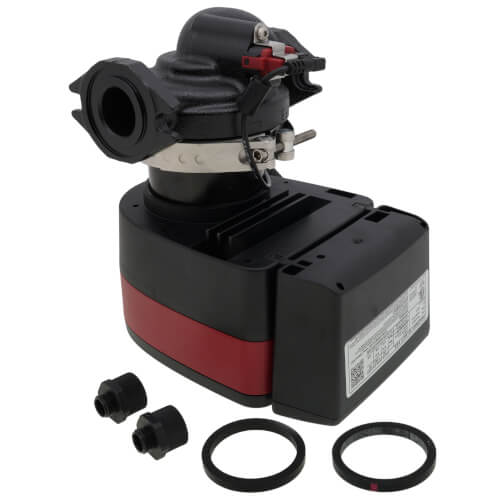

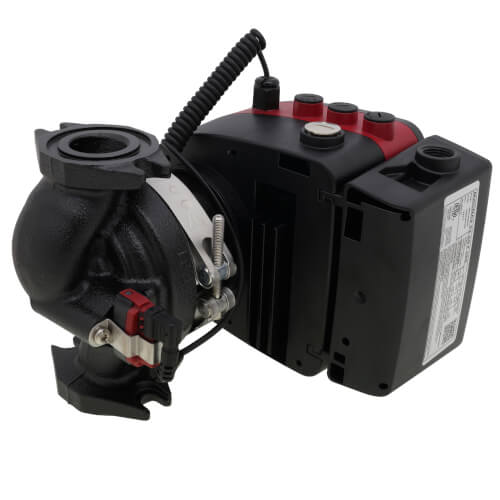

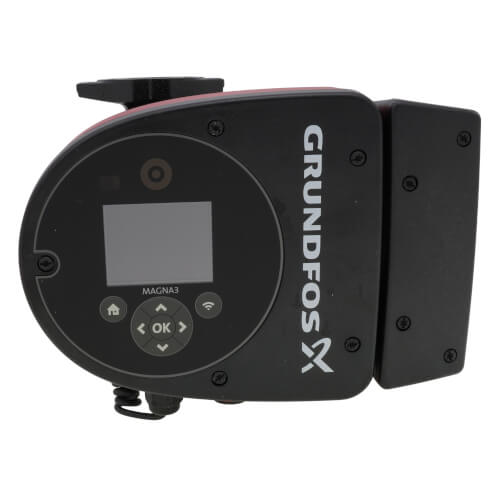

Grundfos 98126820 MAGNA3 Cast Iron Circulator Pump 115-230V 1/6 HP

Product Description

The Grundfos MAGNA3 Cast Iron Circulator Pump, model 98126820, is designed for robust and efficient fluid circulation in heating and cooling systems. This pump features a 1/6 HP motor and operates on dual voltage 115/230V. It is optimized for commercial applications including ground source heat pump systems, hydronic venting, chilled water, snow melt, and hot water recirculation.

• Integrated AUTOADAPT function for dynamic adjustment of operation to system needs, enhancing efficiency.
• FLOWLimit technology restricts flow, limiting the need for throttling valves and reducing installation costs.
• Maintenance-free operation with a permanent magnet motor and a frequency controller for energy optimization.

Product Highlights

Equipped with advanced technological features, the Grundfos MAGNA3 supports a variety of pressure and temperature settings, adapting to different system requirements. Its intelligent control options, such as constant pressure and temperature modes, offer versatility for diverse heating and cooling scenarios.

Product Information

Standard Information

• Weight: 15 pounds
• Size: 9.49 inches width

Technical Specifications

• Voltage: 115 to 230 VAC
• Flow Rate: 38 gallons per minute
• Max Head: 19.69 feet
• Power Range: 8.45 to 108 Watts
• Frequency: 60 Hz
• Max Pressure: 174 psi
• Temperature Range: 32 to 104 degrees Fahrenheit Ambient
