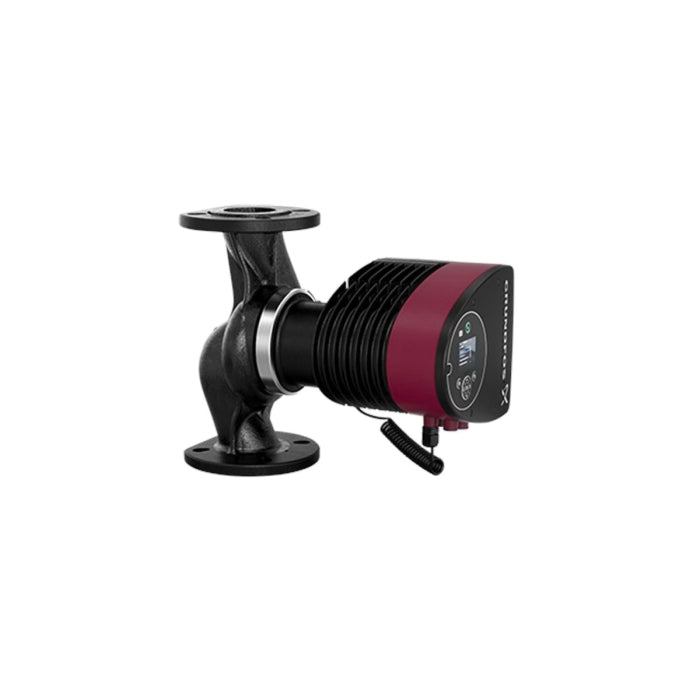

Grundfos 98126804 MAGNA3 3/4 HP 115V Cast Iron Circulator Pump

Product Description

The Grundfos MAGNA3 Circulator Pump, model 98126804, is engineered for exceptional performance in various liquid circulation applications. Designed with groundbreaking technologies like AUTOADAPT and FLOWLIMIT, this 3/4 HP, 115V pump ensures optimal operational efficiency and reliability.

• AUTOADAPT technology for automatic adjustment to the optimal setting.
• FLOWLIMIT function to minimize the need for throttling valves.
• Wireless twin pump redundancy to maximize uptime and performance.

Product Highlights

This circulator pump is integrated with a permanent magnet motor and an intuitive color display for easy monitoring and control. It is perfect for both heating and cooling applications, making it a versatile solution for commercial buildings.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126804
• Power: 3/4 HP
• Voltage: 115V

Technical Specifications

• Flow Rate: 0 to 82 gpm
• Maximum Head: 39.37 ft
• Power Rating: 16 to 442 W
• Amperage Rating: 0.26 to 3.88 A
• Frequency: 60 Hz
• Phase: 1 ph
• Maximum Pressure: 174 psi
• Temperature Range: 32 to 104 deg F
