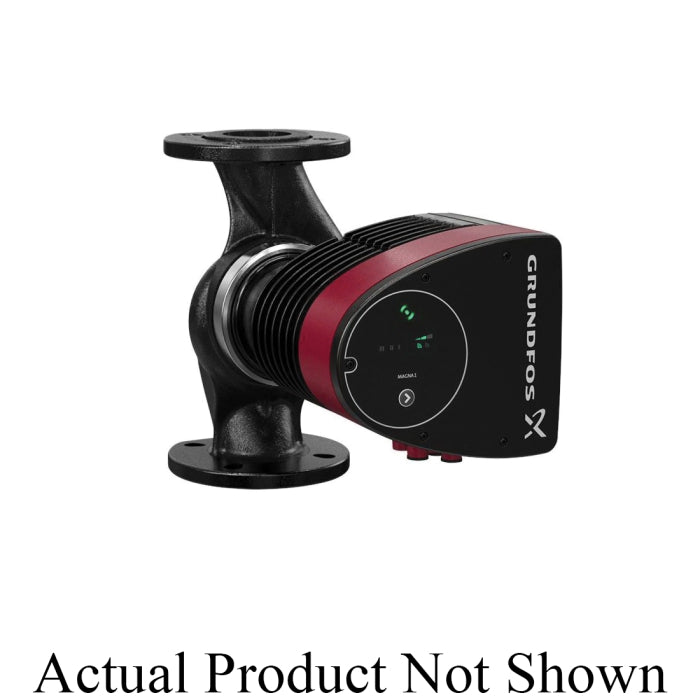

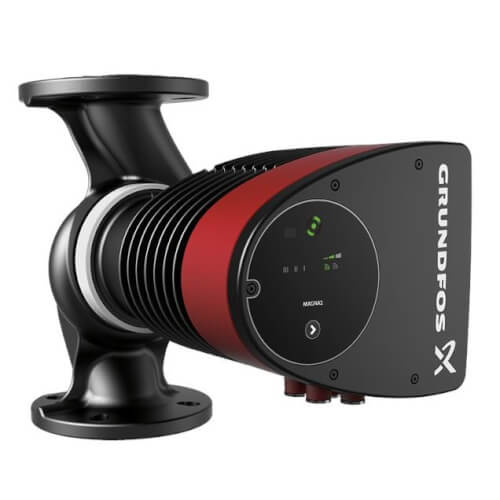

Grundfos 98126803 Magna1 Circulator Pump 115V 1-2HP

Product Description

The Grundfos Magna1 Circulator Pump, MPN 98126803, is designed for circulating liquids in heating systems and domestic hot water systems. It operates with a 1/2 HP motor and is powered by 115V. The pump features a canned rotor design, eliminating the need for a shaft seal and reducing maintenance.

• Energy-efficient with EuP compliance
• Suitable for both heating and cooling systems
• Integrated frequency converter for optimal performance

Product Highlights

The Grundfos Magna1 is ideal for both new and retrofit projects, offering a maintenance-free solution with low life cycle costs. It is equipped with proportional pressure control, constant pressure control, and constant curve features, making it a versatile choice for various applications.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98126803

Technical Specifications

• Amperage Rating: 0.24 to 4.15 A
• Dimensions: 8-1/2 in H
• Enclosure Type: X4D
• Frequency Rating: 60 Hz
• Maximum Head: 39.37 ft
• Maximum Pressure: 174 psi
• Phase: 1 ph
• Power Rating: 17 to 474 W
• Temperature Rating: 32 to 104 deg F Ambient
• Voltage Rating: 115 VAC
