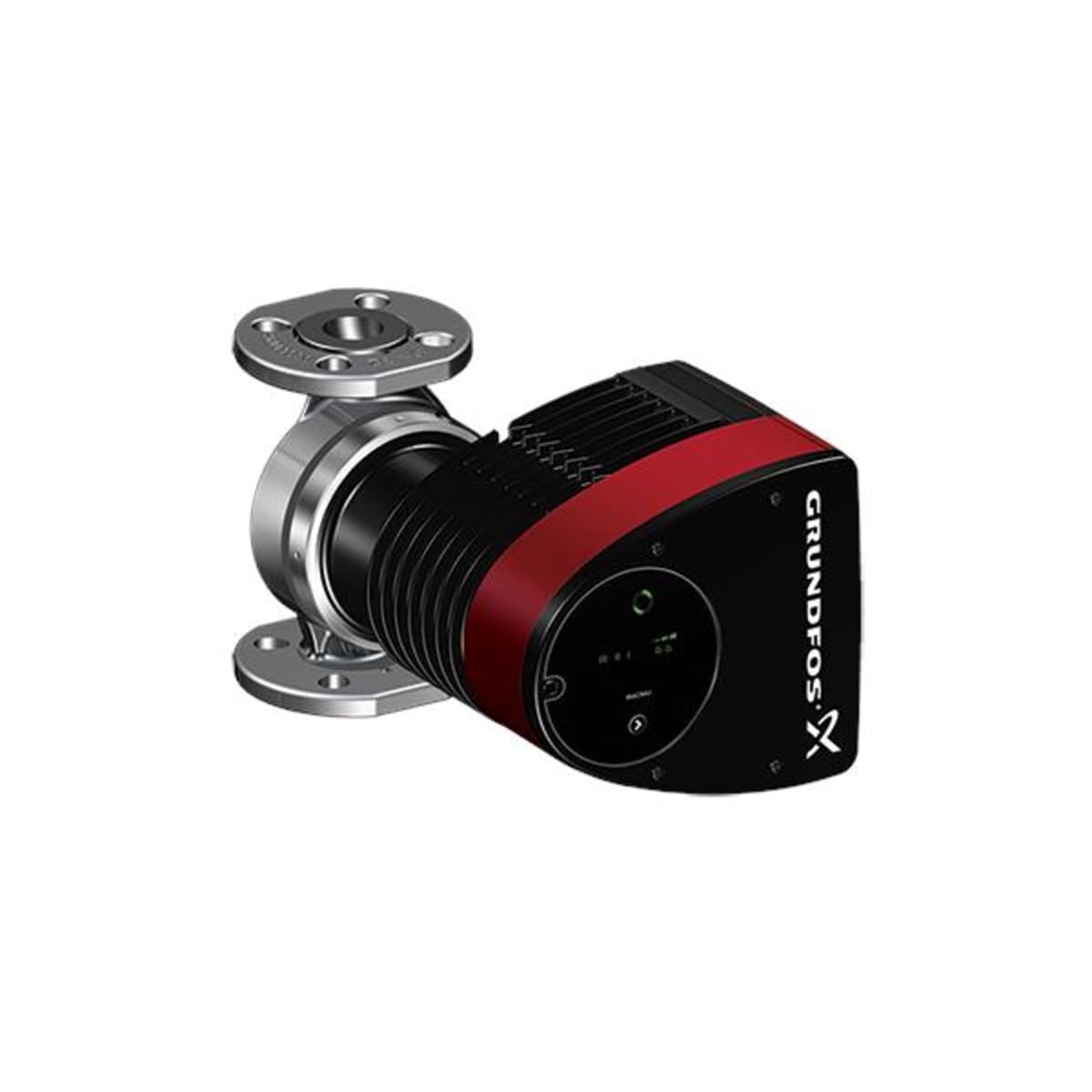

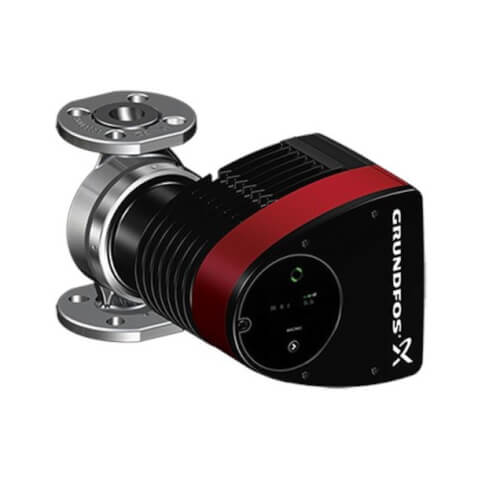

Grundfos 98126801 MAGNA1 40-80, Max Head 26.25, Max Flow 65 gpm - Stainless Steel Body - 230V

Product Description

The Grundfos MAGNA1 circulator pump model 98126801 is designed for heating and domestic hot-water applications. This stainless-steel circulator can handle various circulation needs in residential and commercial setups.

• Variable speed operation for energy efficiency
• Can be used in heating, cooling, and domestic hot water systems
• Integrated user-friendly interface for easy installation and maintenance

Product Highlights

The MAGNA1 pump features a canned-rotor design, which combines the pump and motor in one unit, reducing the need for maintenance and enhancing reliability.

Product Information

Standard Information

• Brand: Grundfos
• Model Number: 98126801

Technical Specifications

• Type: Variable Speed Circulator
• Material: Stainless Steel
• Horsepower: 1/3 hp
• Voltage: 230V
• Max Head: 26.25 ft
• Max Flow Rate: 65 gpm
• Connection Type: Flanged
• Weight: 32.29 lbs
