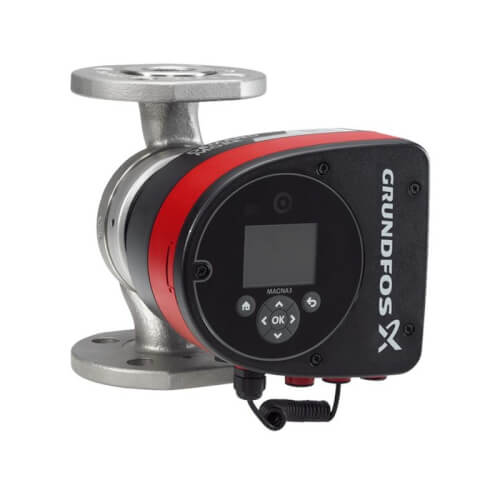

Grundfos 98124702 MAGNA3 65-120, Max Head 39.37, Max Flow 140 gpm - Stainless Steel Body - 230V

Product Description

The Grundfos MAGNA3 98124702 is a stainless steel circulator pump designed for heating, cooling, and domestic hot water systems. It features a permanent magnet motor for efficiency and can fit various building projects. The MAGNA3 connects to the Grundfos GO app via Bluetooth for enhanced monitoring and control.

• Fieldbus support through optional CIM modules.
• AutoAdapt mode for optimized settings based on system needs.
• Wireless twin pump redundancy to reduce downtime.

Product Highlights

This circulator pump is designed for high performance and low energy consumption, making it suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 98124702

Technical Specifications

• Type: Variable Speed Circulator
• Material: Stainless Steel
• Flow Rate: Up to 140 gpm
• Max Head: 39.37 ft
• Voltage: 230V
• Frequency: 60 Hz
• Max Pressure: 175 psi
• Weight: 52.22 lbs
