Product Description

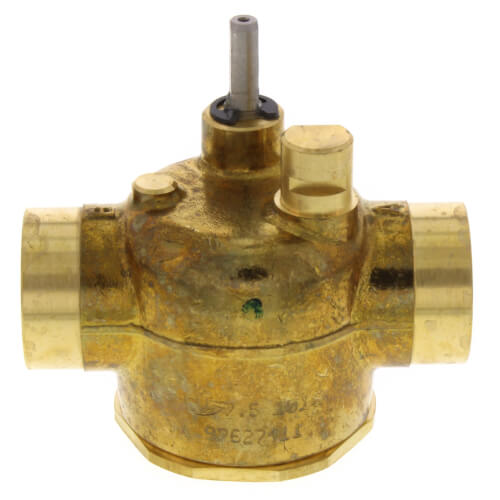

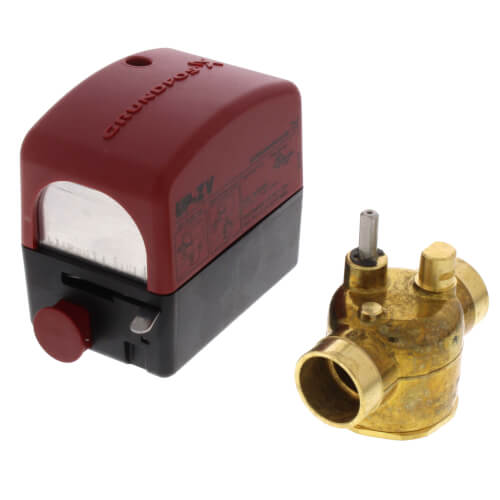

The Grundfos 3/4 Inch Sweat UP-ZV 2-Way Normally Closed Zone Valve with End Switch, part number 97627419, exemplifies high-quality valve technology designed for reliability in heating systems. Essential for controlling water flow within a heating circuit, this valve ensures effective functioning and energy efficiency in residential and commercial settings.
- Robust motor and gear design ensures longevity and quiet operation.

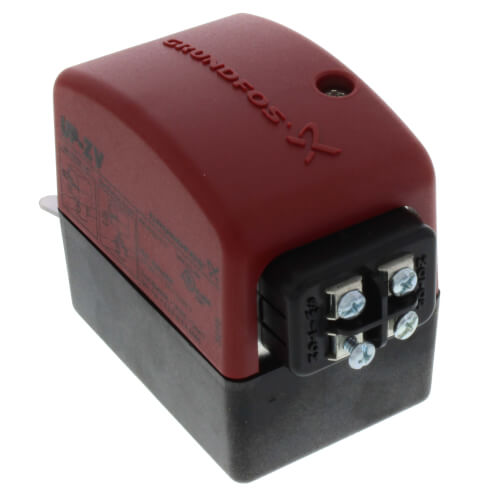

- Features in-line removable actuator for easy installation and service.
- Equipped with a manual override and a position indicator for enhanced operational control.
Product Highlights
Designed for streamlined operation, the Grundfos zone valve includes Silent Close-Off Technology, ensuring minimal noise during operation. Its compact structure allows for economical use of space, while the synchronous hysteresis motor operates efficiently at 7VA, consuming only 5 watts.
Product Information
Standard Information
-
Material: Wood
-
Display Style: Manual
Technical Specifications
-
Voltage: 24 Volts
-
Weight: 2 pounds
-
Package Dimensions: 4.88 x 4.38 x 3.5 inches
-
Connection Type: Sweat
-
Flow Capacity (Cv): 7.5
-
Max Fluid Temperature: 240 degrees Fahrenheit
-
Min Fluid Temperature: 32 degrees Fahrenheit
