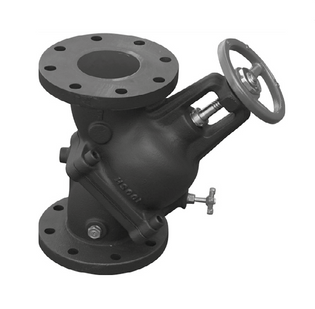

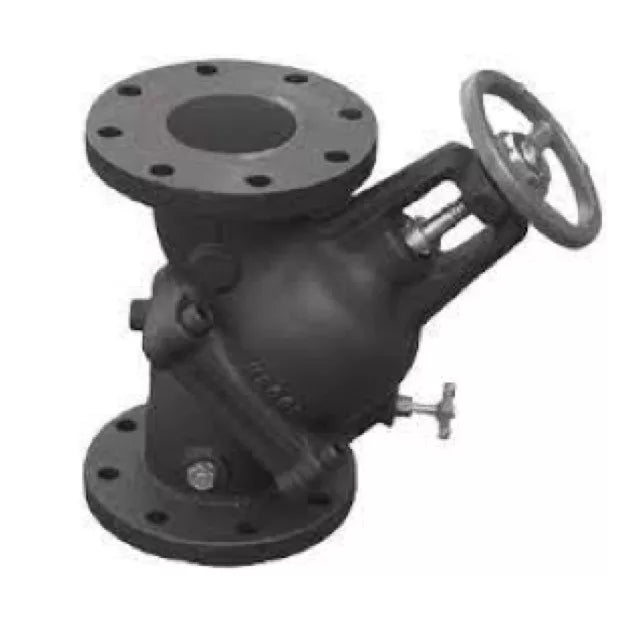

Grundfos 96877845 paco cv40-125 4 inches flanged triple duty valve, angle/straight

Product Description

The Grundfos 96877845 PACO CV40-125 is a 4" flanged triple duty valve that combines three valves in one: shut-off valve, balancing valve, and check valve. It provides the feature of changing the flange orientation to allow 90° pipe connection. It reduces the overall system pressure drop since fewer individual components are needed when installing a pump.

• Combines three valves in one: shut-off valve, balancing valve, and check valve.
• Provides the feature of changing the flange orientation to allow 90° pipe connection.
• Reduces the overall system pressure drop since fewer individual components are needed when installing a pump.

Product Highlights

Simplifies dismantling and servicing. Internal parts, such as the disc, can be easily removed and/or replaced.

Product Information

Standard Information

• Brand: GRUNDFOS
• Manufacturer Part Number: 96877845

Technical Specifications

• Pumped liquid: Water
• Max. pressure: 175 psi
• Max. liquid temperature: 150 °F
• Test pressure: 265 psi
• Brand: Grundfos
• Type: Combination Valve
• Body Material: Cast Iron
• Size: 4 in
• MPN: 96877845
• Class: Class 125
• End Connection Type: Flanged, Flat Face (FF)
• ANSI Specifications: ANSI 125, ANSI 250
• ASTM Specifications: No
• Automatic Shut-Off: No
• Built-In Grinder: No
• CARB OTC LEED Compliant: No
• Collection: Series CV
• Flow Rate: 400 gpm
• GSA Approved: No
• ISO Specifications: No
• Material: Cast Iron, Ductile Iron
• Maximum Pressure: 175 psi
• Maximum Temperature: 248
• Minimum Pressure: 0 psi
• NSF Certified: No
• Pressure Class: 175#
• Pump Application: Commercial
• Valve Size: 4 in
• Valve Type: Combination Valve
• Ref. #: CV40-125
• Part #: 96877845
• Inlet Pipe (125# ANSI): 4″
• Outlet Pipe (125# ANSI): 4″
• Connections size: 4 In.
