Product Description

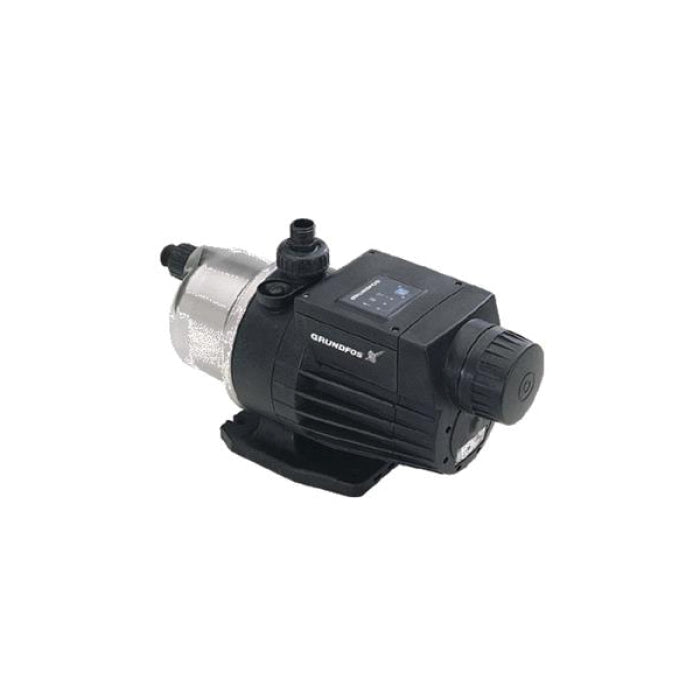

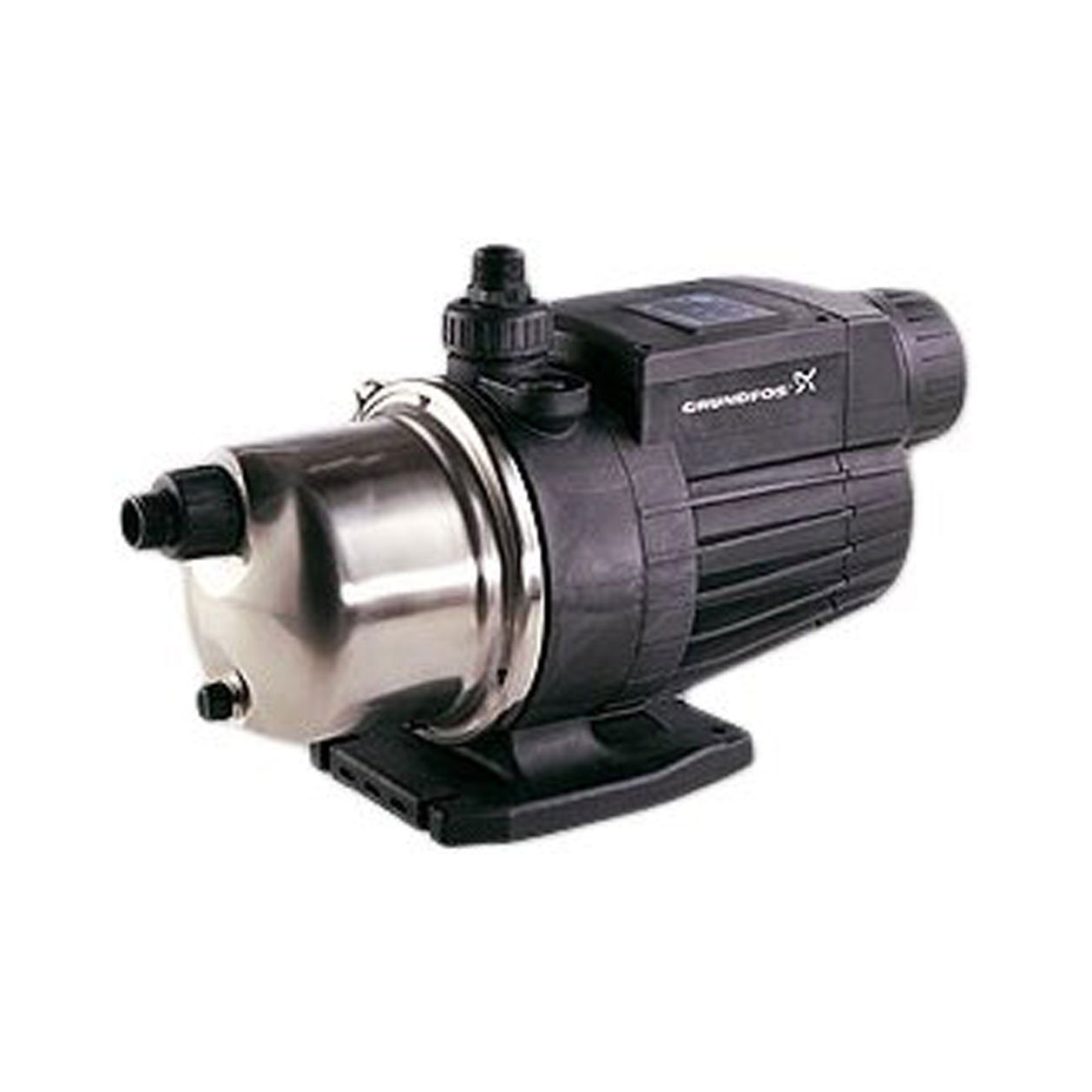

The Grundfos MQ3-35 96860172 is a complete, all-in-one pressure booster pump designed for reliable water supply needs. This pump includes a motor, diaphragm tank, and built-in sensors for flow and pressure control. The unit aims to provide dry run protection and incorporates features for long-lasting performance.
- Self-priming operation
- Built-in dry run protection
- Automatic reset function
Product Highlights
This pump is suitable for domestic, agricultural, and horticultural applications. It is easy to install and operate with a low noise level.
Product Information
Standard Information
-
Brand: Grundfos
-
MPN: 96860172
Technical Specifications
-
Power Rating: 1.2 hp
-
Flow Rate: 13.7 gpm
-
Voltage Rating: 110 to 120 VAC
-
Maximum Head: 114.8 ft
-
Maximum Pressure: 109 psi
-
Inlet Size: 1 in NPT
-
Outlet Size: 1 in NPT
-
Amperage Rating: 8 A
-
Frequency Rating: 60 Hz
-
Temperature Rating: 32 to 113 deg F Ambient
-
Enclosure Type: IP54
-
Impeller Type: PPO + 20% Glass Fiber-PTFE
-
Material: POM + 25% Glass Fiber
-
Overall Dimensions: 12 x 12 x 12 inches
-
Item Weight: 30 lbs
